Transform your Thinkware dash cam into a multi-channel surveillance system. Cover every angle of your vehicle for all-around Full HD surveillance. Add up to 4 side, interior, and rearview cameras to the main front-facing dash cam to simultaneously get footage all around.

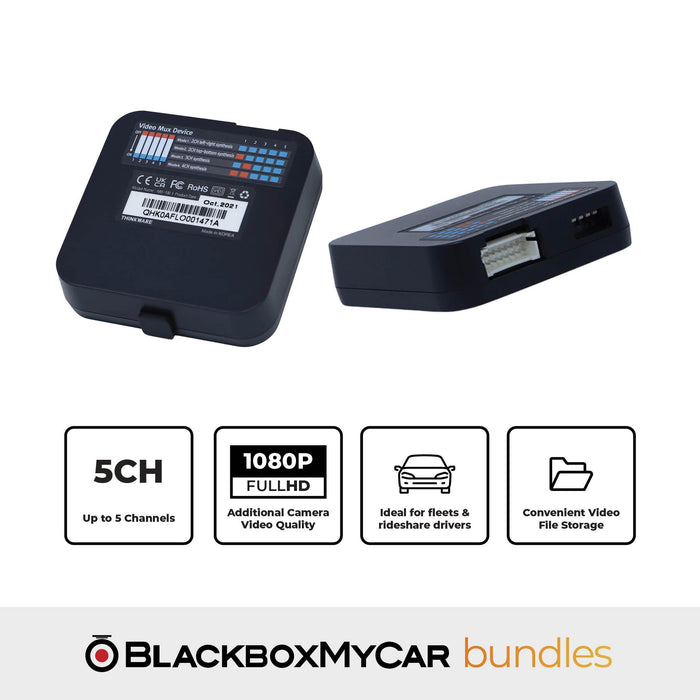

The Thinkware Multiplexer can only be used as an add-on accessory to a compatible Thinkware dash cam (Q200, F200 Pro, F790, X700 and X800). The Multiplexer is not a camera and cannot be used to record driving footage by itself.
Choose between any of these cameras to make your Q200 footage complete:
Exterior Sideview
Mounted on the exterior of the vehicle to capture events in blind spots; perfect for commercial vehicles and small trucks.
Exterior Rearview
Mounted on the exterior of the vehicle to record what's happening around the vehicle; perfeect for vehicles with no rear window.
Interior Infrared
Mounted inside the vehicle to capture events inside the vehicle; perfect for rideshare and taxi drivers.
Interior Rear View
Mounted on the rear windshield to capture the traffic behind.

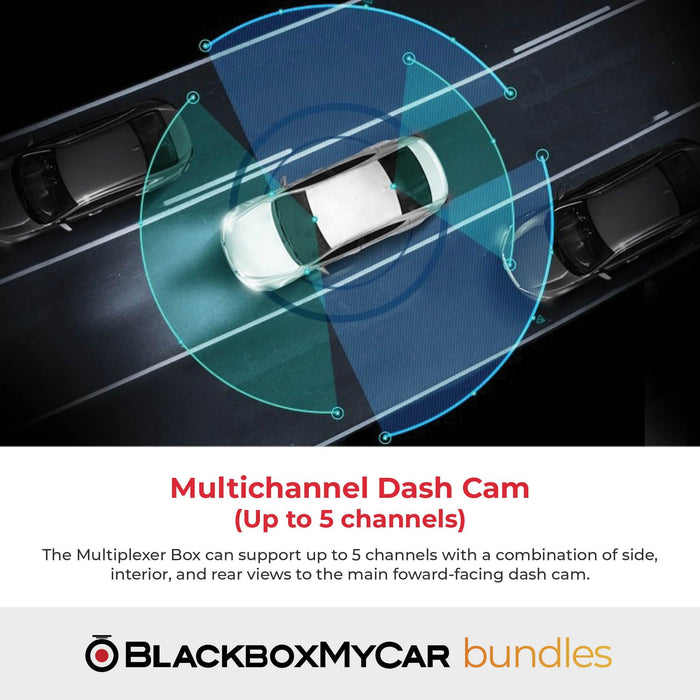

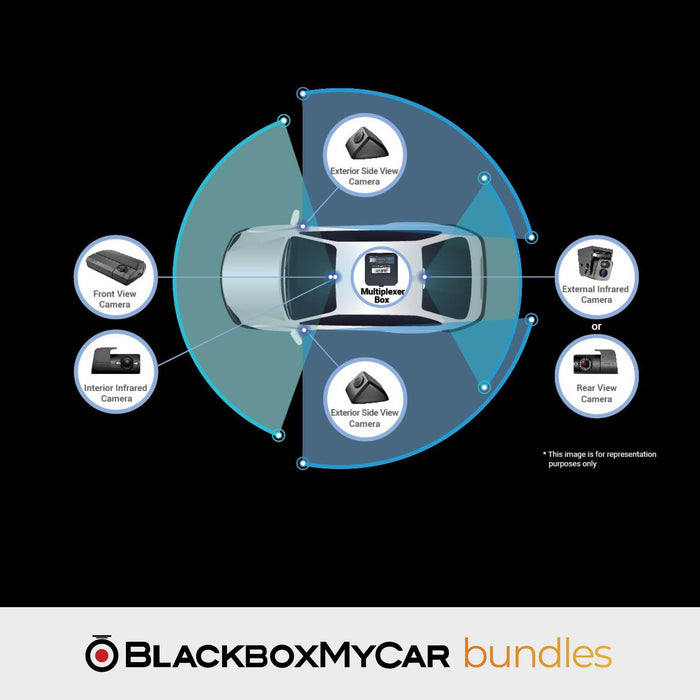

Thanks to the modular design of the multiplexer, you can add a combination of side, interior, and rear views to the main forward-facing dash cam. Get 360° protection without the hassle of managing multiple dash cams or dealing with huge video files.
Advanced 360° recording system for heavy-duty vehicles & trucks, installed externally
Enhanced recording for secure cargo van monitoring, installed externally
Tailored recording solution for rideshare drivers, including Uber, Lyft, taxis & more
All additional cameras record in 1080p Full HD and then reduced by have (960 x 540p) to be combined into one video. This ensures that details captured in the original video is preserved.
Get the whole picture and protect your investment against potential fraudulent claims. Adding additional cameras with the Multiplexer will ensure that all details are captured from different angles for a complete and accurate description of the vehicle incident.
The Multiplexer merges recordings from the additional cameras into one feed, allowing the Q200 to operate as a full DVR system that would traditionally cost a fortune.
All additional cameras record in 1080p Full HD and then reduced by have (960 x 540p) to be combined into one video. This ensures that details captured in the original video is preserved.
Recordings from the main/front-facing dash cam unit are saved separately.
Stay tuned for our Long Term Review. Subscribe to our YouTube channel for the latest news, reviews, and guides.
Recording Channel
up to 4 analog Full HD cameras (total of 5 cameras)
Composite Video
Full HD 1080p @ 30 FPS
Dimensions
(WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
Weight
40.0g (1.41 oz)
Storage temperature
-20°~ 70°C (-4°~ 158°F)
Operating Temperature
-10°~ 60°C (14°~ 140°F)
Key
piano code switch
Power Source
2 (BAT, GND) | DC 12V - 24V
Power Cable Length
3m
AV-IN
4 cables | 2.5 pi Stereo-jack type | AFHD
AV-OUT
for front camera connection | 2.5 pi Stereo-jack type
Country of Origin
South Korea
Warranty
1-Year Manufacturer Warranty
