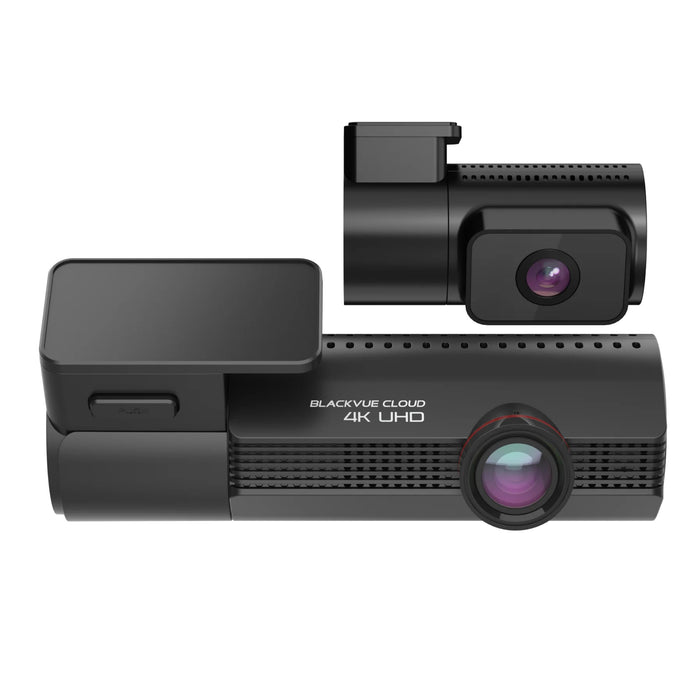

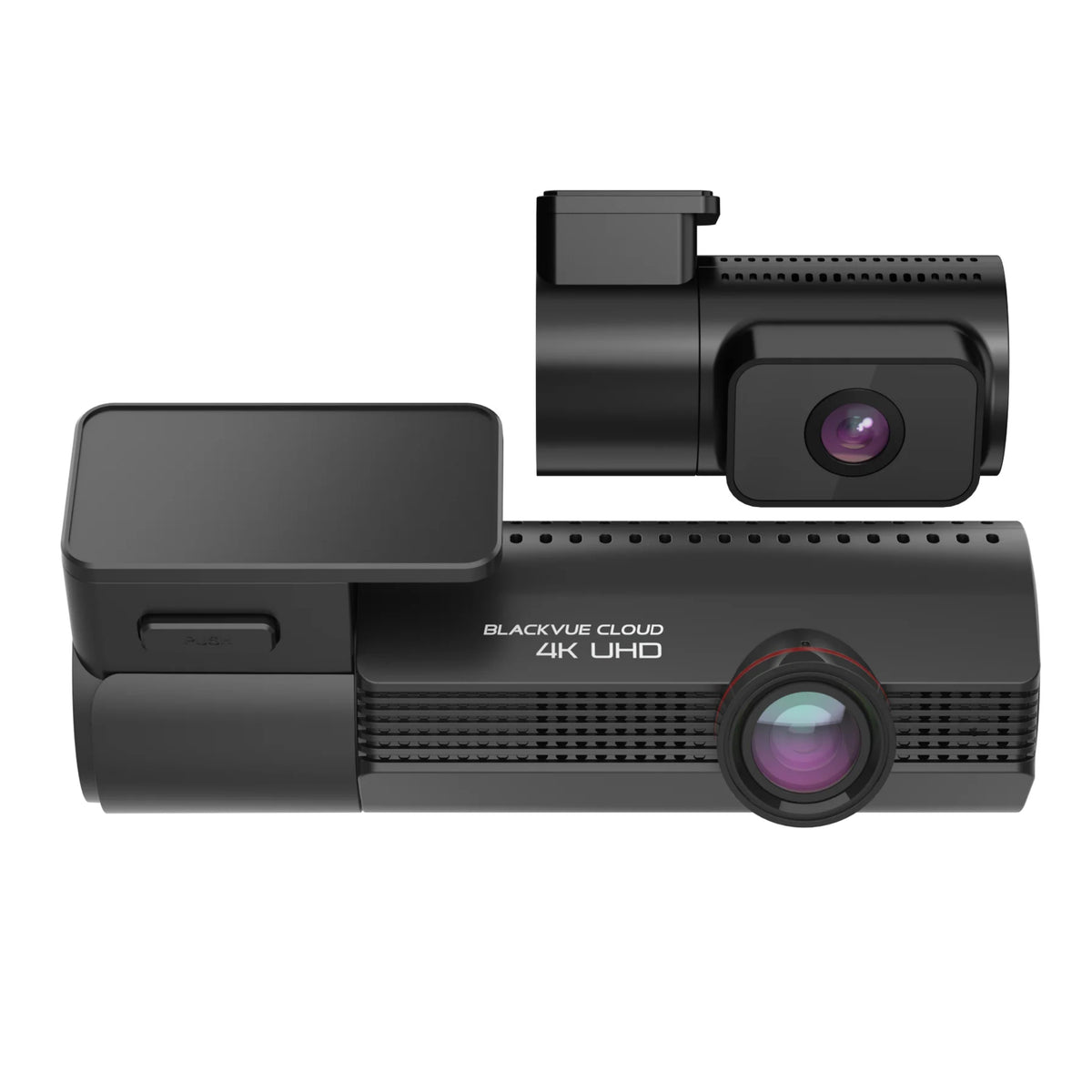

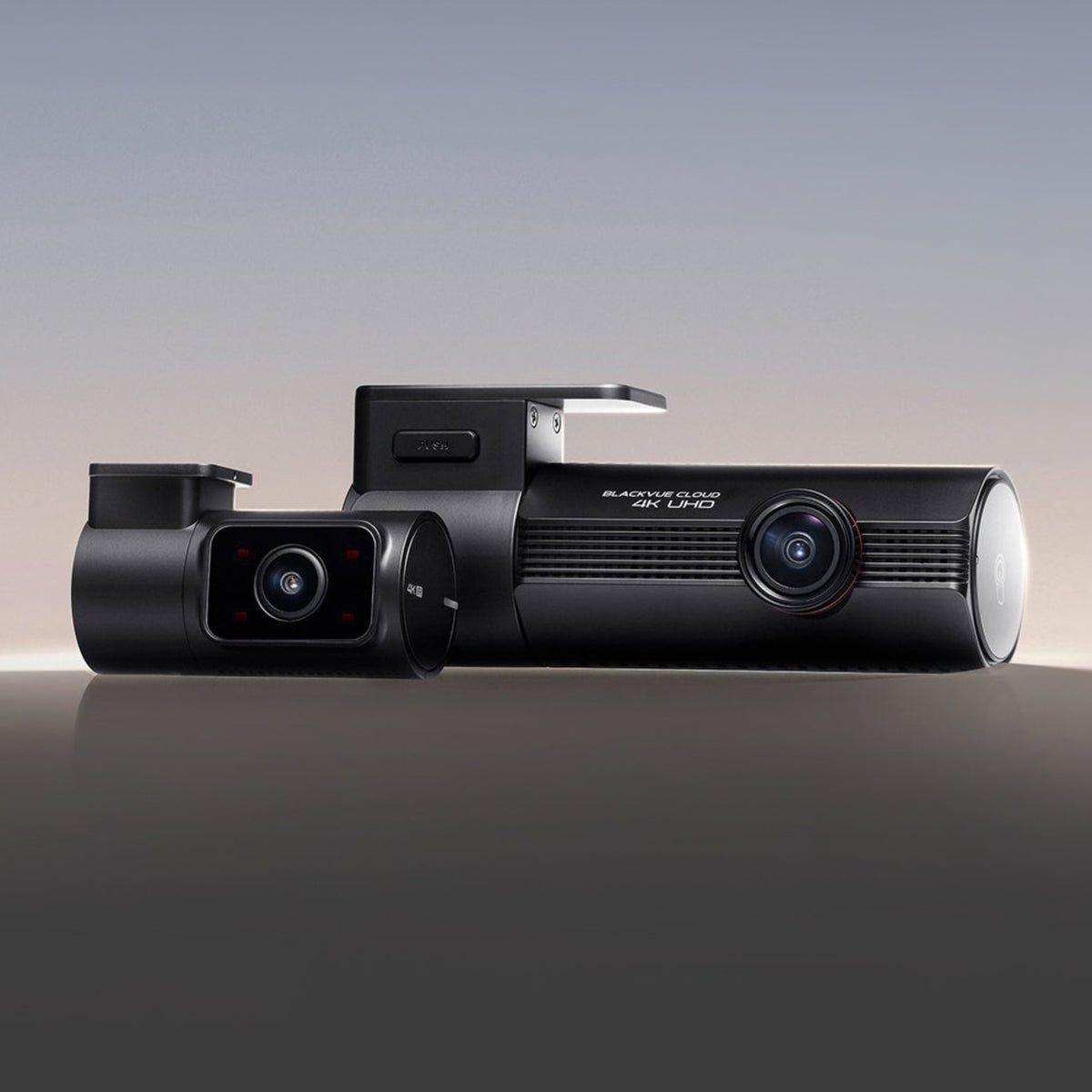

BlackVue Elite 10 Cabin front camera and separate 4K infrared interior camera
SKU BV-Elite10Cabin

BlackVue Elite 10 Cabin 4K Front + 4K IR Interior Dash Cam

Availability:
In stock
$867.99 - $867.99
$867.99 CAD
$867.99 - $867.99
$867.99 CAD
Special Order Up to 10 Days Before Shipping
Every order includes:

Chat with an expert

Talk to a dash cam expert before you order.

Contact an expert

BlackVue Elite 10 Cabin 4K Front + 4K IR Interior Dash Cam

Keep a clear record of the road ahead and what happens inside your vehicle. The BlackVue Elite 10 Cabin pairs a 4K front camera with a separate 4K infrared interior camera, both at 30FPS. It suits rideshare, passenger transport and family vehicles where interior recording matters. A 64GB card and hardwire cable are included; remote Cloud access needs an internet connection.

4K + 4K Recording

4K Infrared Cabin

Front HDR

Dual-Band Wi-Fi

Built-in GPS

Cloud Compatible

Record the road and the people inside

The front and cabin cameras both record 4K at 30FPS. The separate 160° interior view helps document passenger interactions and family journeys, while the 146° front view records the road. This kit covers the road ahead and the interior, rather than the road behind.

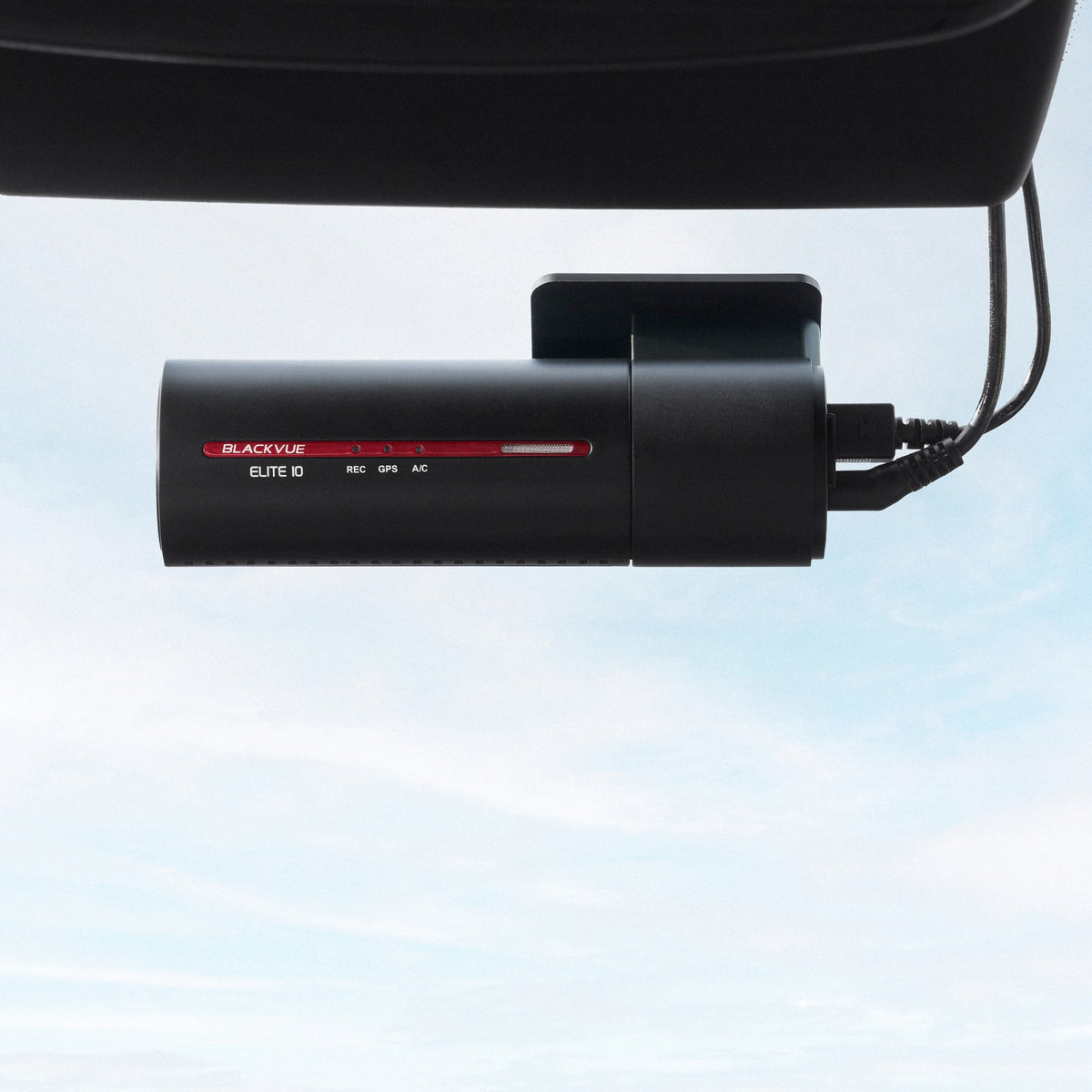

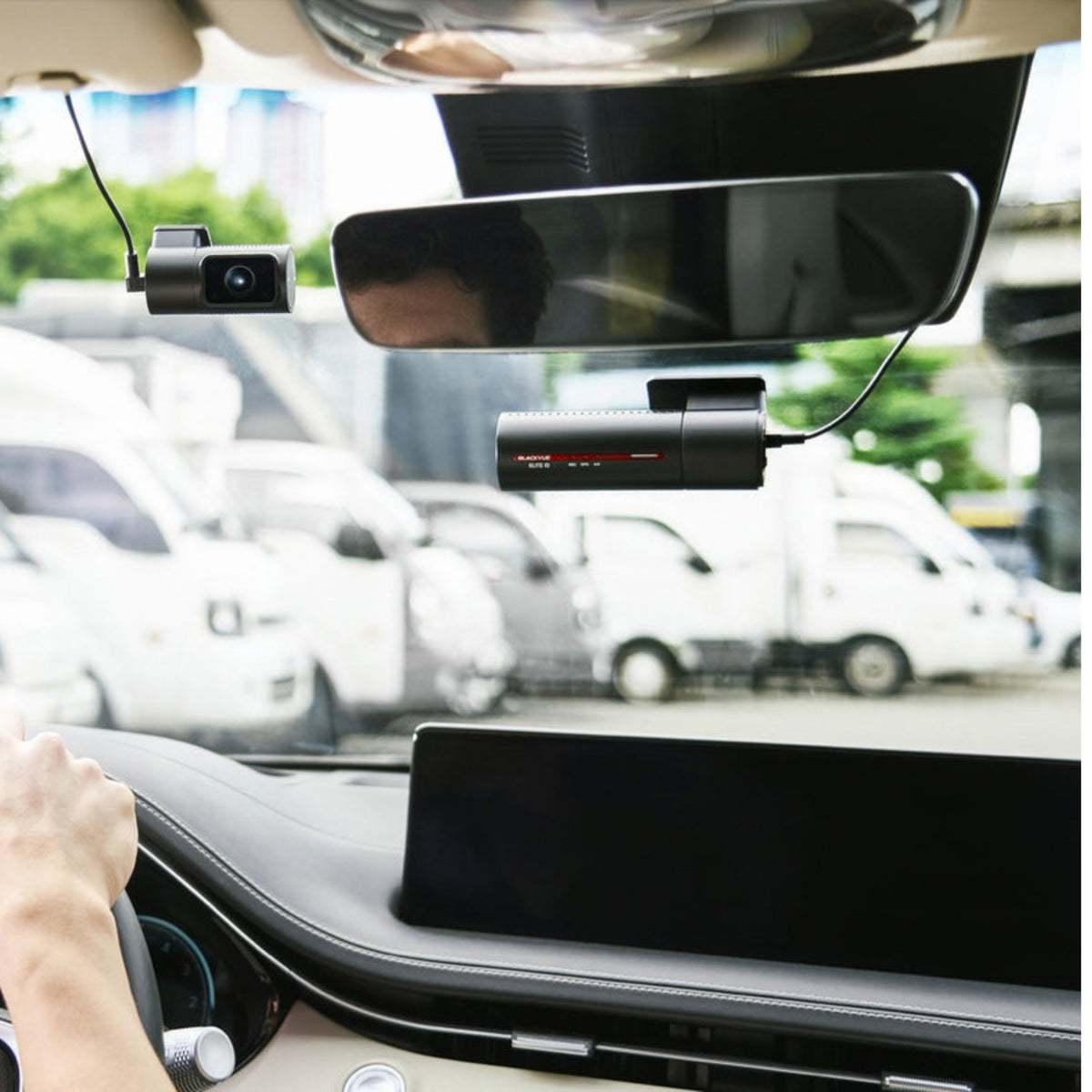

Elite 10 Cabin front and separate infrared interior cameras installed near the mirror

See inside in daylight and darkness

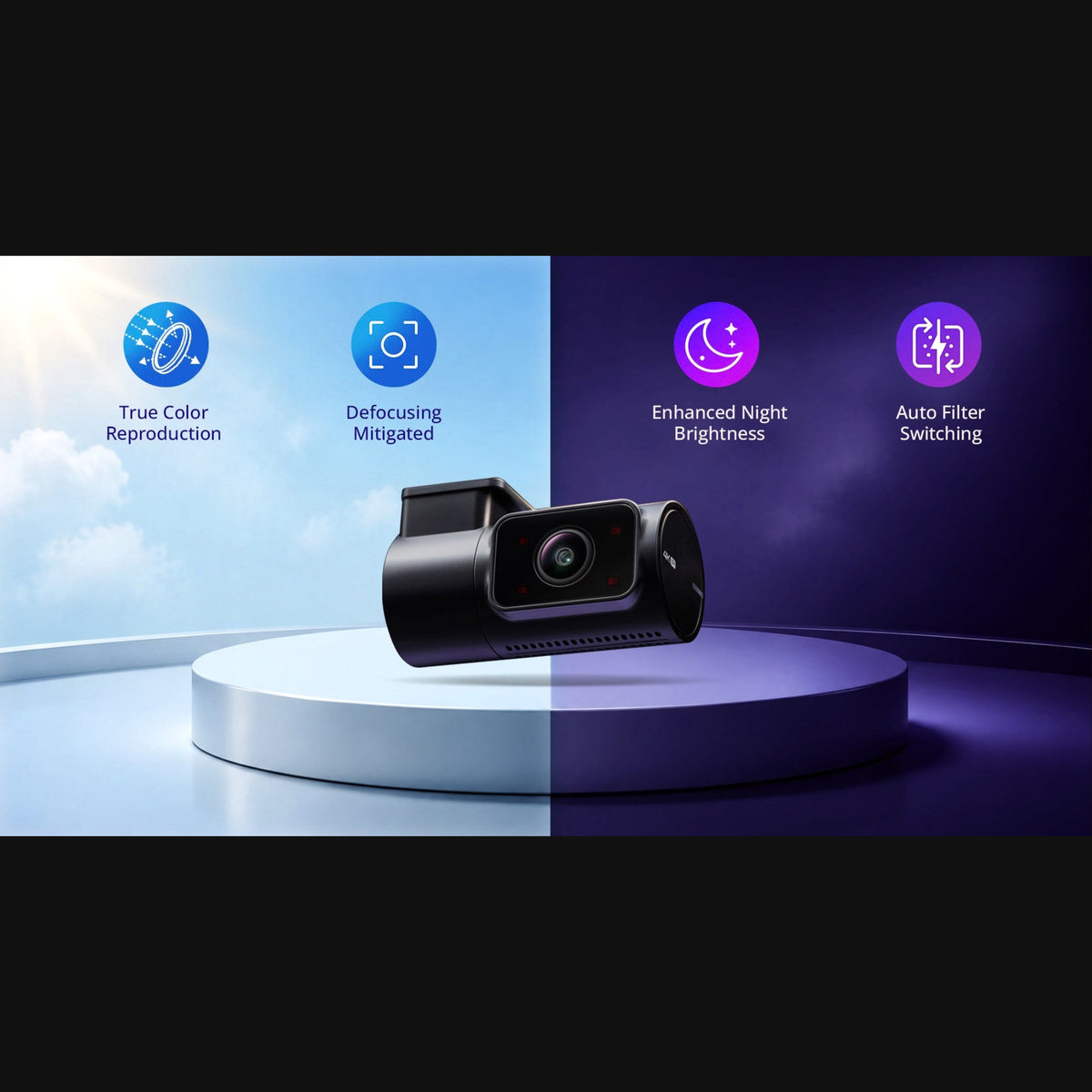

Four infrared LEDs illuminate the cabin in darkness. The automatic IR-cut filter preserves natural daytime colours and switches for infrared recording as light falls. 4K infrared cabin recording makes this configuration useful for passenger vehicles and rideshare; seat positions and obstructions still affect what is visible.

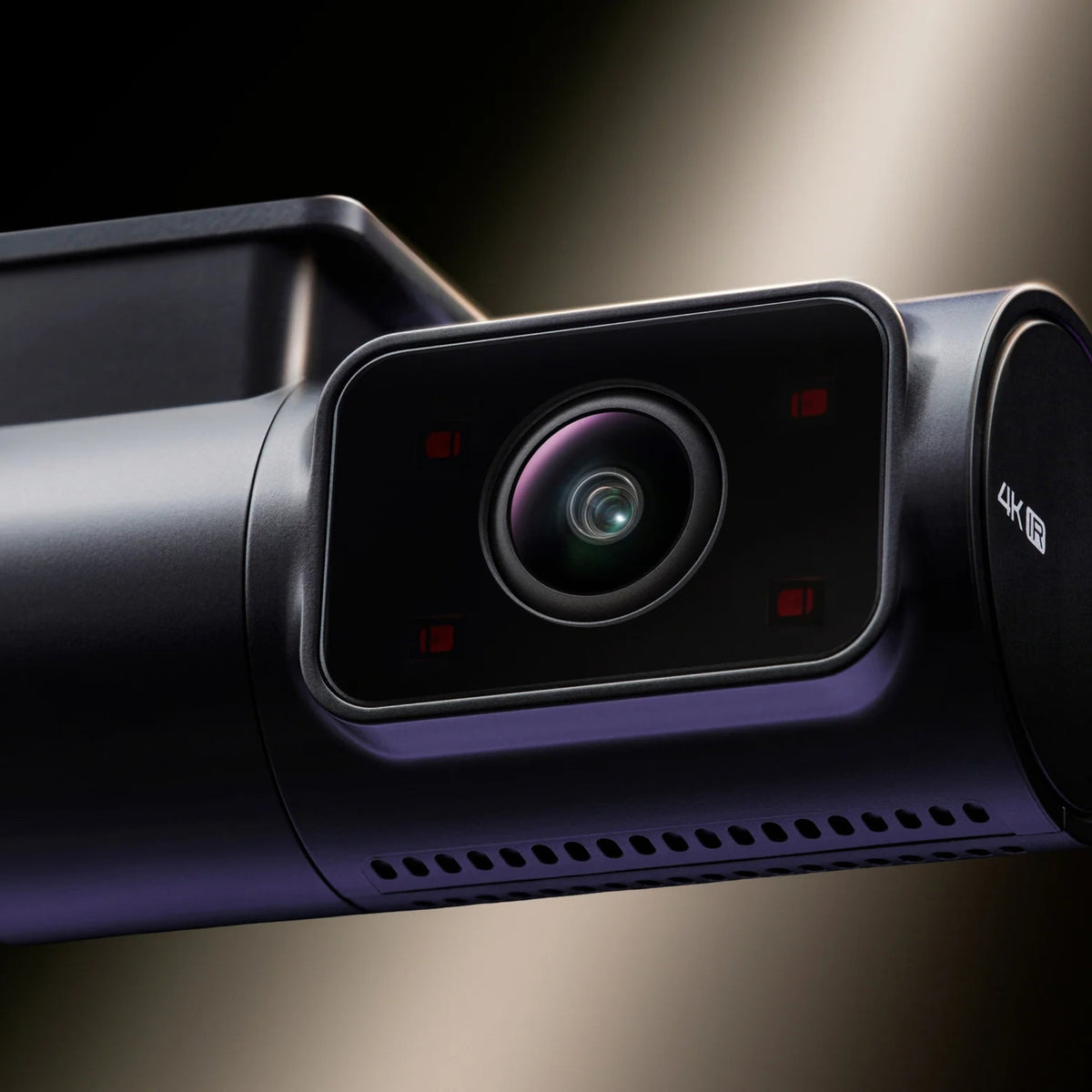

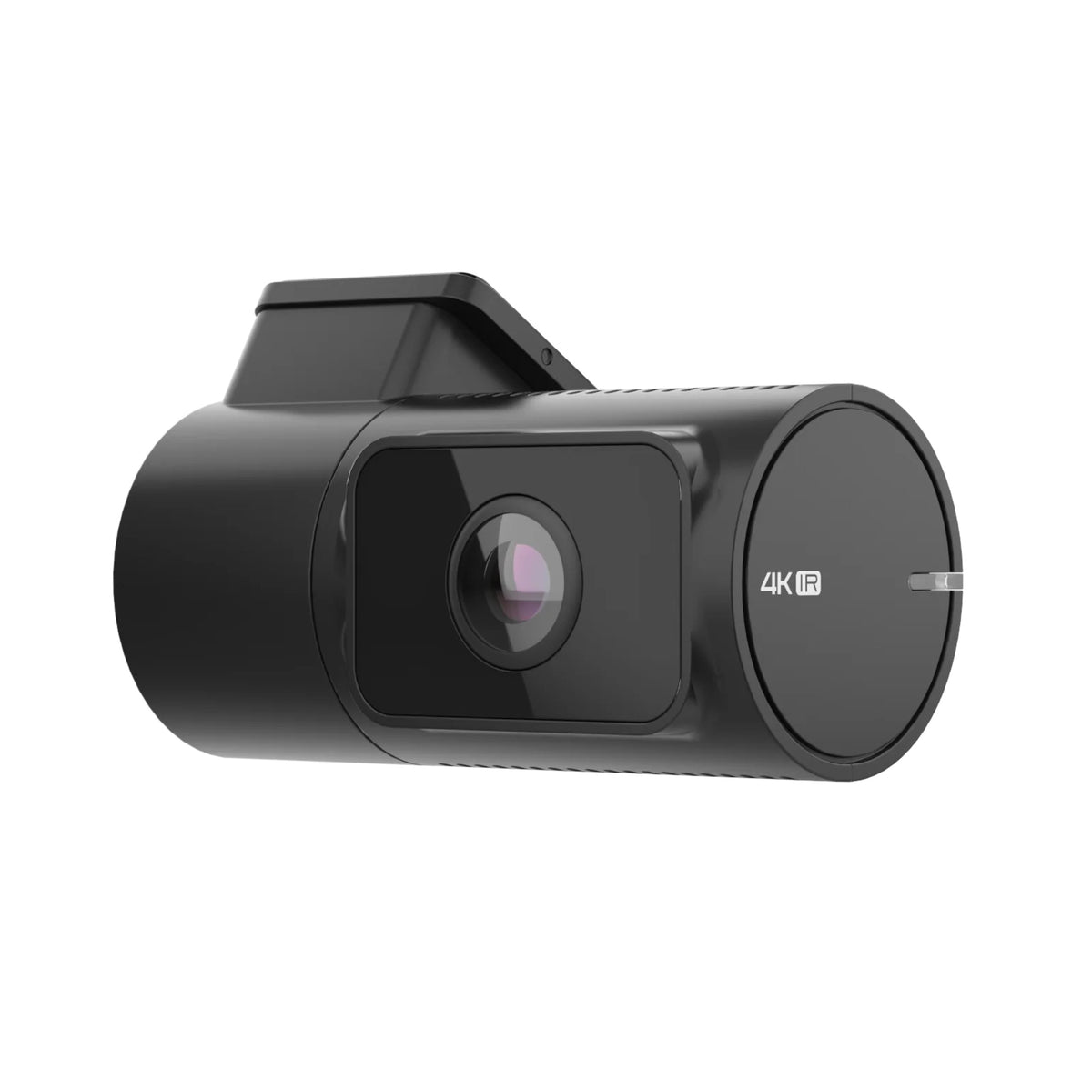

Close-up of the Elite 10 Cabin infrared lens and four LEDs

Retain front-road detail in changing light

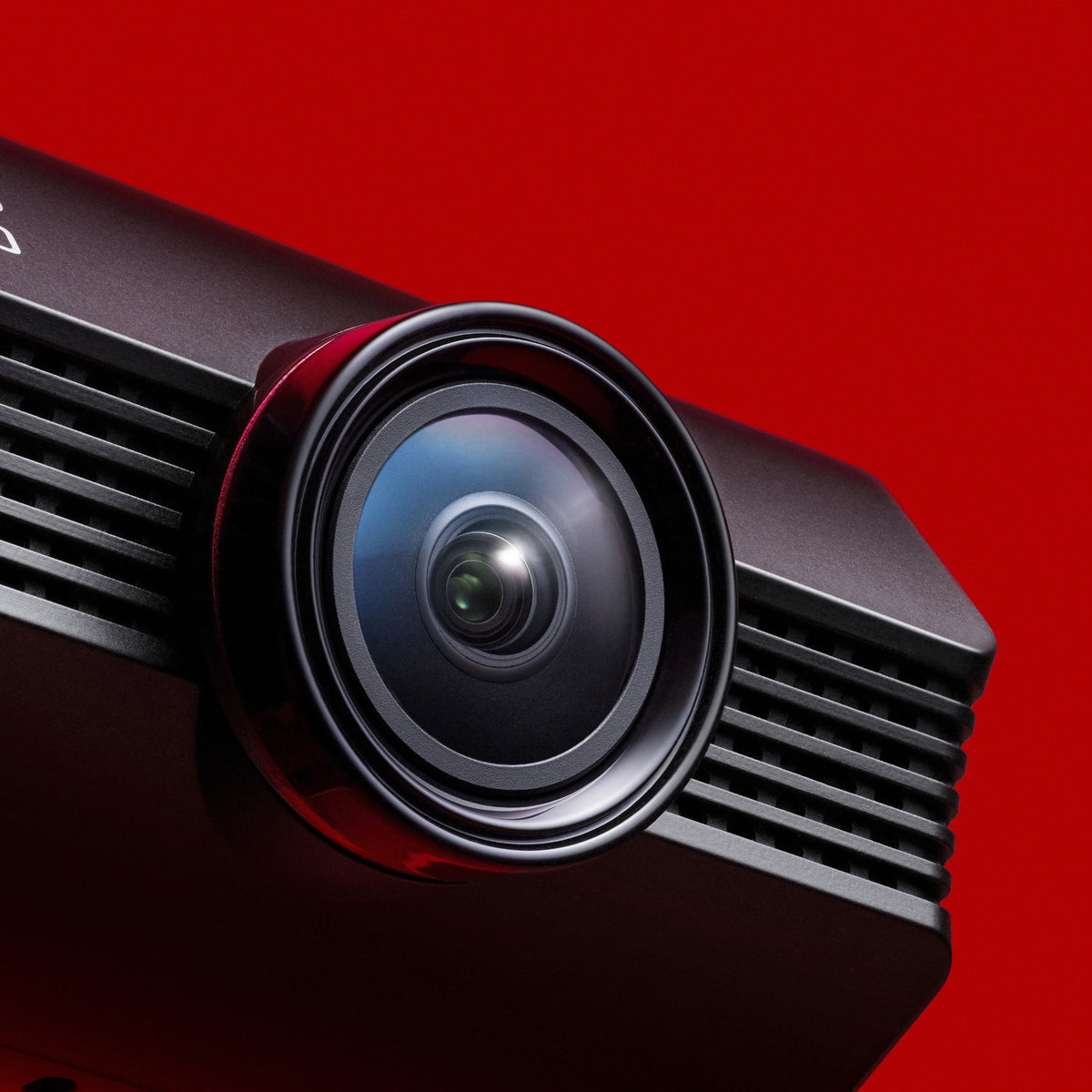

The front camera combines Sony STARVIS 2 with HDR to balance bright and dark areas. HDR applies to the front channel; the interior camera does not record HDR. For dashboard reflections, the compatible Elite-series CPL filter is an optional addition.

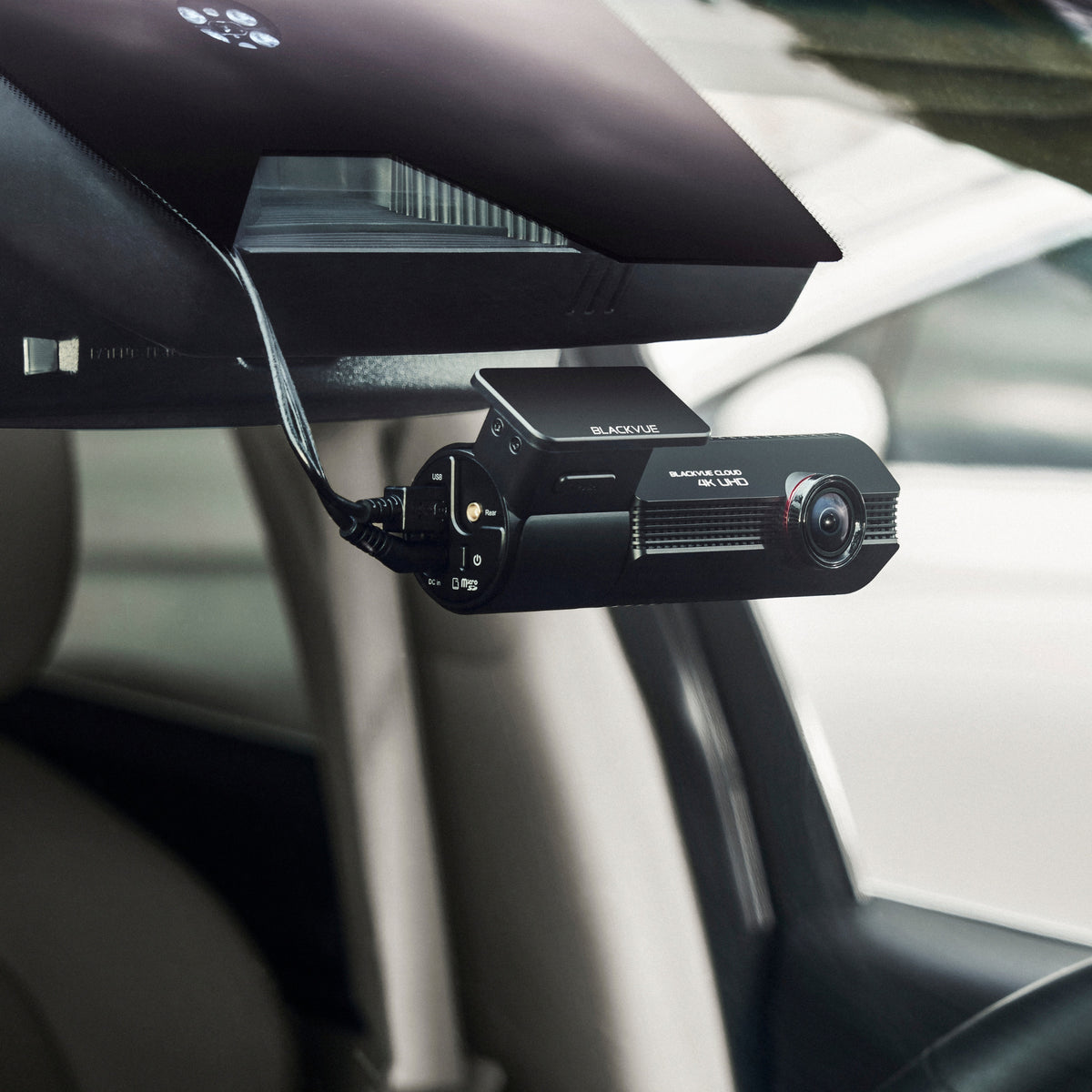

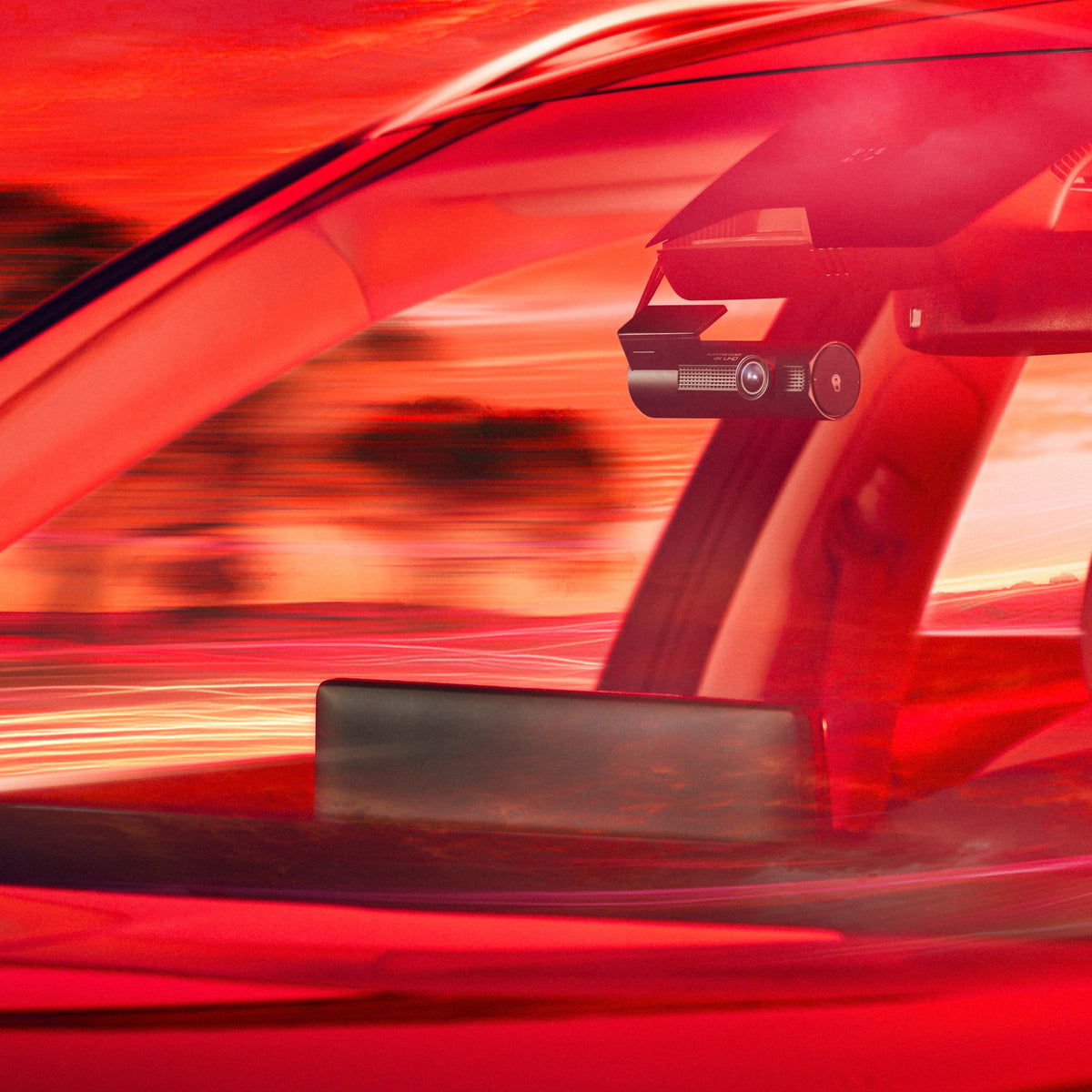

BlackVue Elite 10 front camera installed through the windshield

Match parking recording to your needs

Motion & Impact Detection uses a 10-second pre-event buffer. Time Lapse records at 1FPS and saves detected impacts at normal speed. Power Saving uses impact-triggered standby with no pre-event buffer. Engine-off recording needs continuous power from the included hardwire installation or an optional BlackVue B-130A battery pack. Recording time depends on available power, settings and conditions.

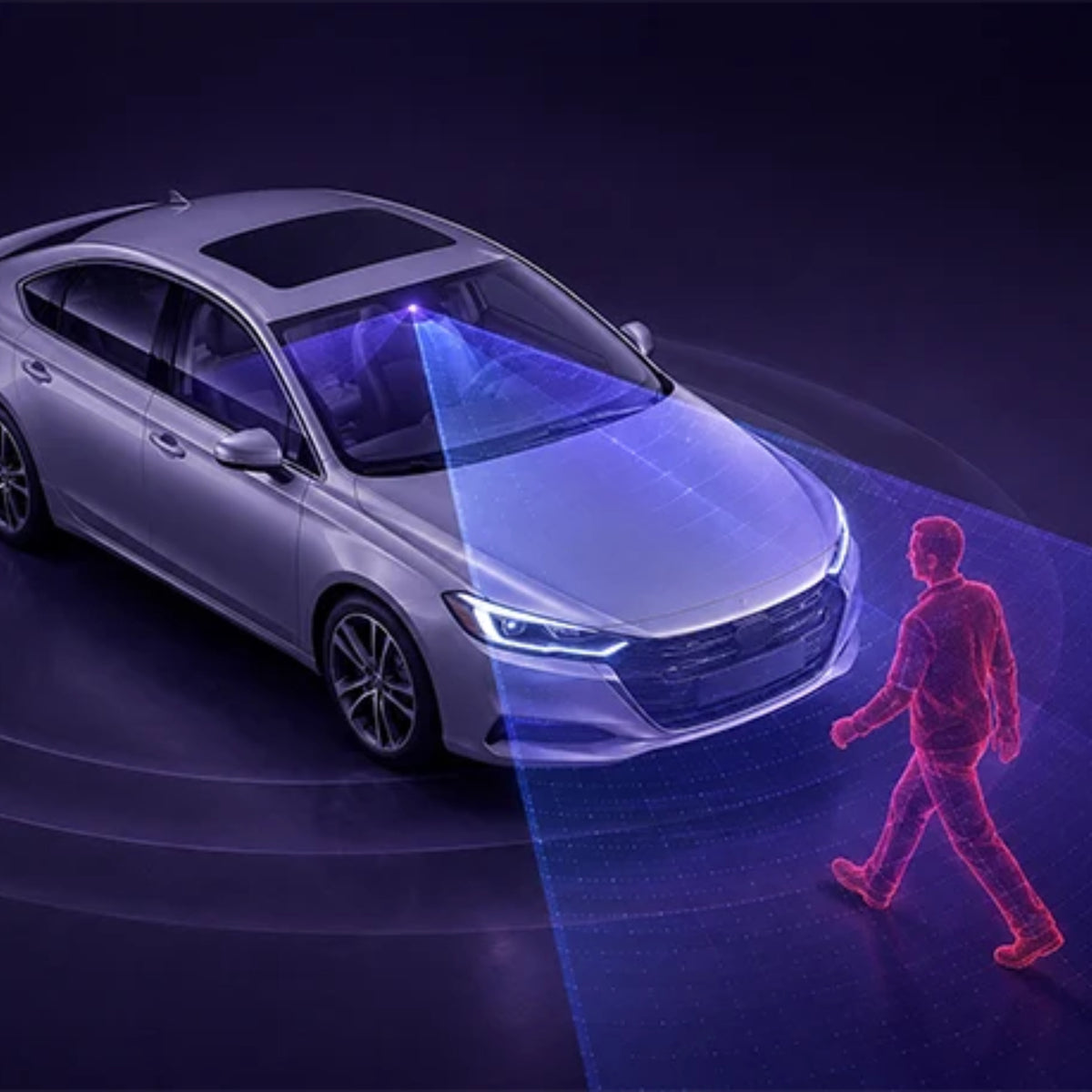

Manufacturer illustration of motion and impact parking detection

Access footage nearby or through the Cloud

Pair through Bluetooth, then use dual-band Wi-Fi 5 for nearby settings and clip access. Built-in GPS records speed and location alongside your footage. Cloud features require an internet connection, such as a suitable hotspot or the optional CM100G LTE connectivity module with a compatible SIM and data plan. LTE is not built in; Cloud service features depend on the selected plan and connectivity.

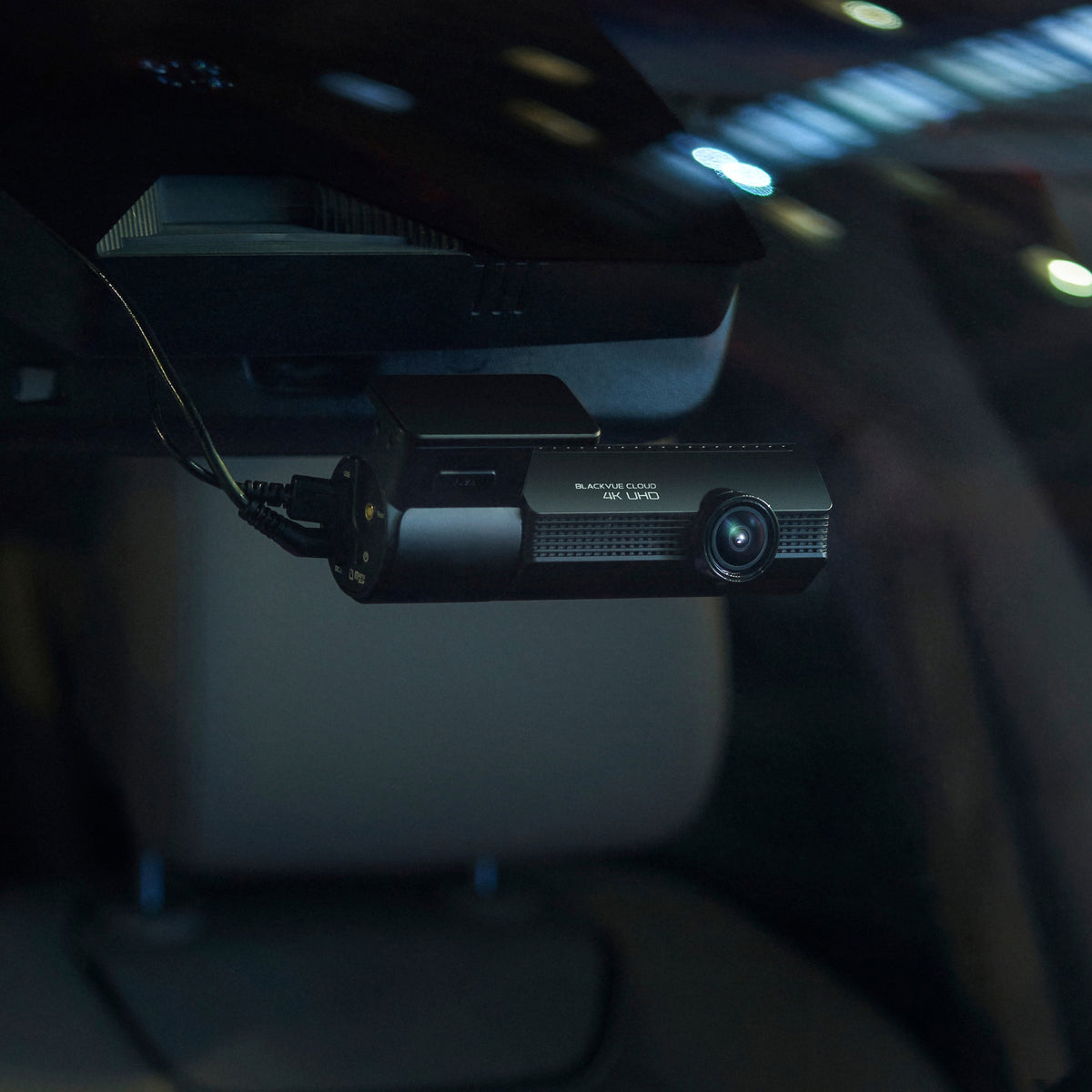

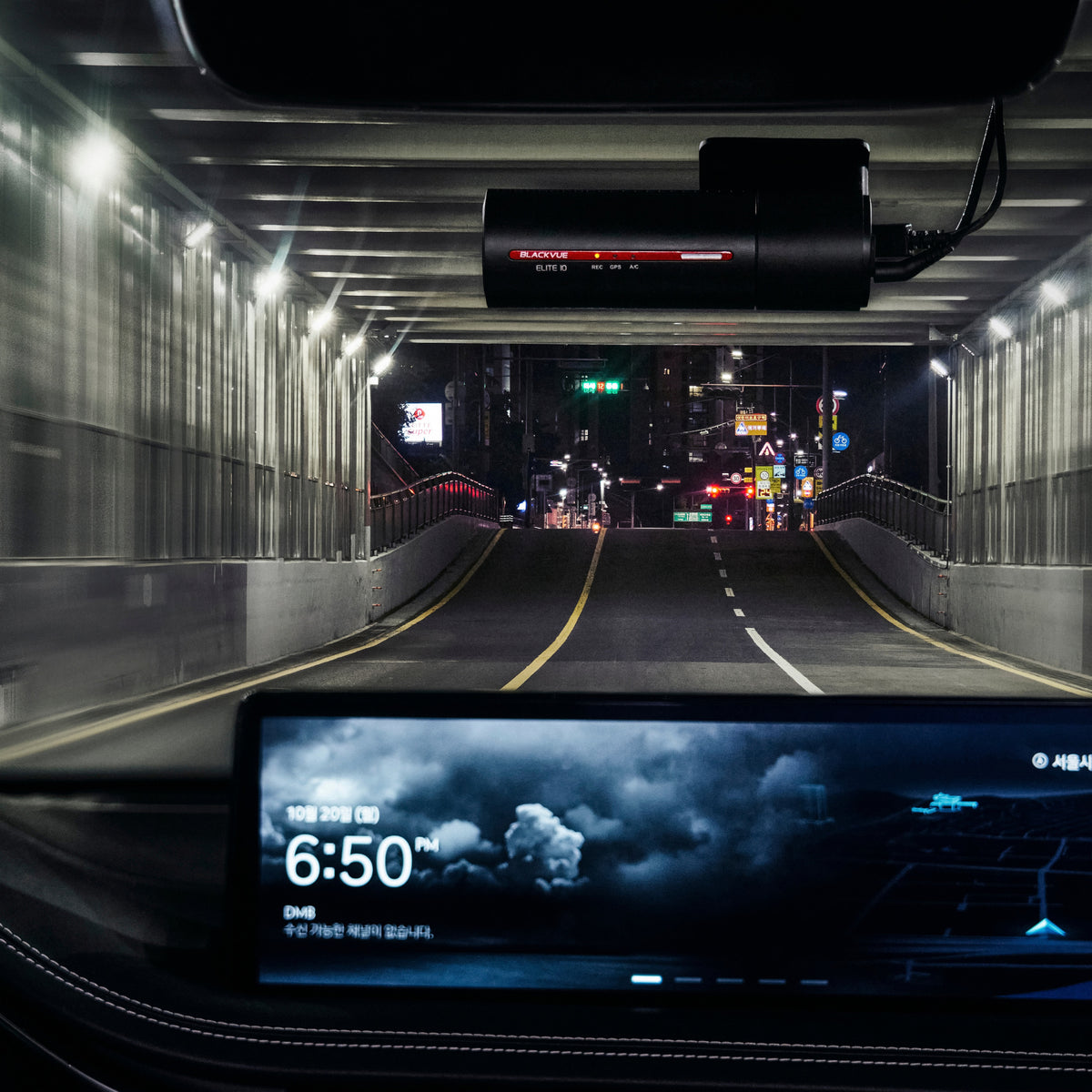

BlackVue Elite 10 front camera installed in a vehicle at night

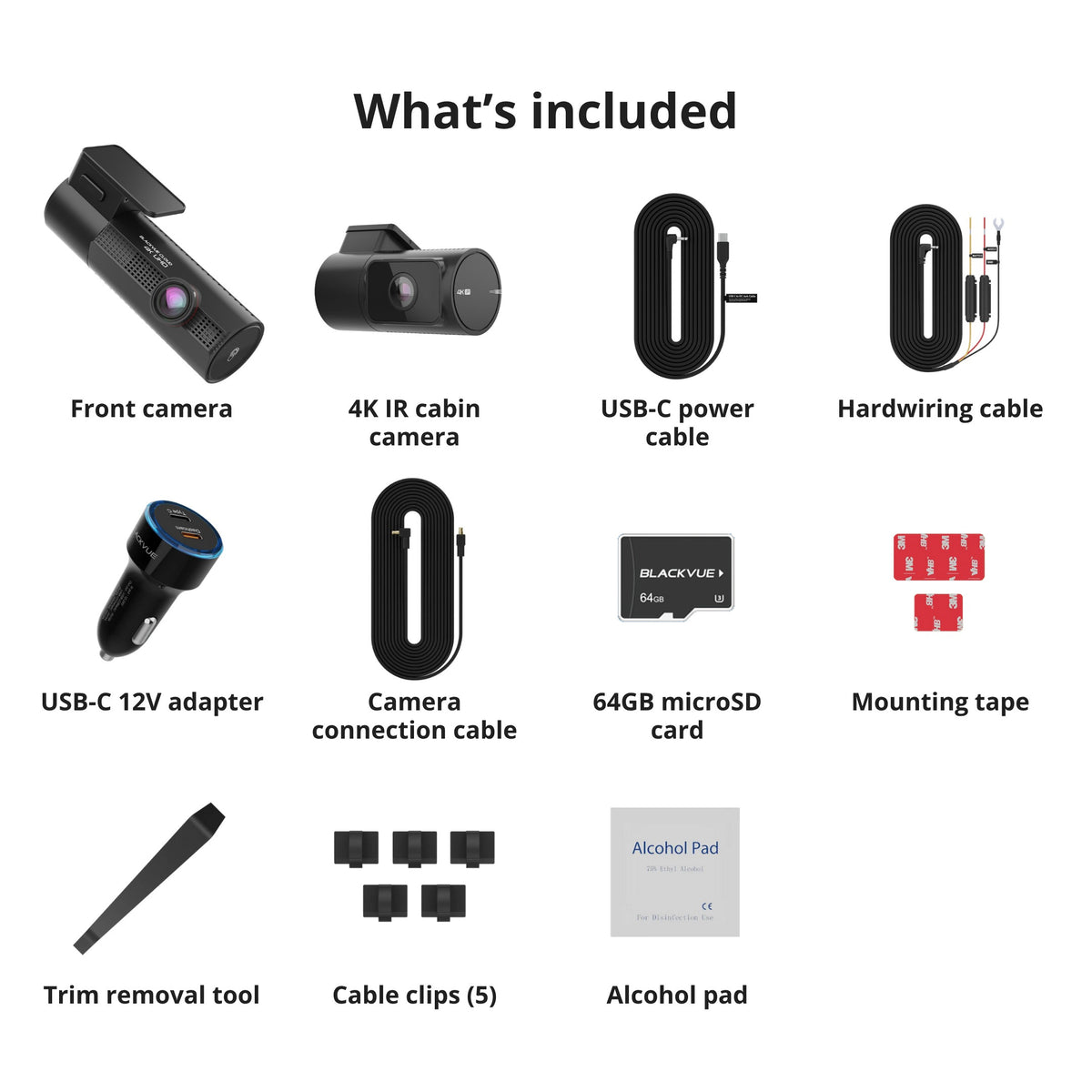

What's Included
BlackVue Elite 10 Cabin kit with front and infrared interior cameras, 64GB card, power and connection cables, adapter and mounting accessories

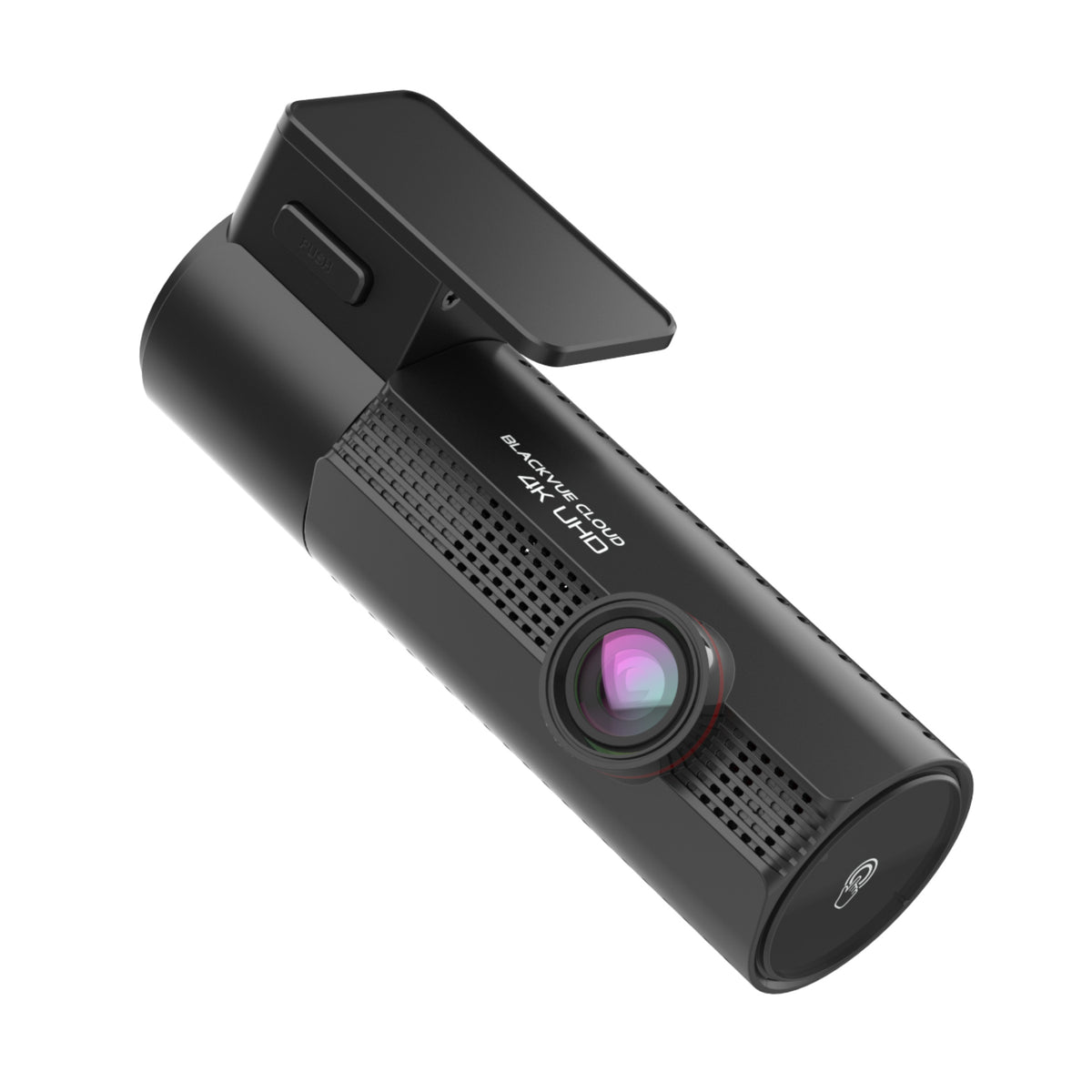

  • Elite 10 front camera
  • RC3-4K-IR cabin camera
  • USB-C power cable
  • Hardwiring cable
  • USB-C 12V power adapter
  • Cabin camera connection cable
  • 64GB microSD card
  • Mounting tape
  • Trim removal tool
  • Cable clips ×5
  • Alcohol pad
Specifications
Camera Configuration Front + infrared interior (2CH)
Front Resolution 3840 × 2160 (4K) at 30FPS with HDR
Interior/Telephoto Resolution 3840 × 2160 (4K) at 30FPS
Front Image Sensor Sony STARVIS 2
Interior/Telephoto Image Sensor OmniVision OS08E10 with Nyxel technology
Front Field of View 146° diagonal / 125° horizontal / 68° vertical
Interior/Telephoto Field of View 160° diagonal / 133° horizontal / 72° vertical
Recording Modes Normal, manual event and impact event; H.265 / H.264 MP4
Display No built-in screen
Connectivity Wi-Fi 5 (2.4GHz / 5GHz), Bluetooth pairing; optional CM100G LTE module
GPS Built-in GPS / GLONASS
Parking Mode Motion & Impact Detection, Time Lapse, Power Saving; hardwire or compatible battery power required
Storage Support microSD up to 1TB
Included Memory Card 64GB
Power DC12–24V external power; supercapacitor backup. Hardwire cable and USB-C 12V adapter included; USB-C PD3.0/adapter power is for driving only
Operating Temperature −20°C to 65°C (−4°F to 149°F)
Dimensions Front: 129.7mm width × 55.3mm height; cabin: 33.3mm width × 32.0mm height
Warranty 2-year manufacturer warranty for the new dash cam
Frequently Asked Questions

Is this a front-and-rear kit?

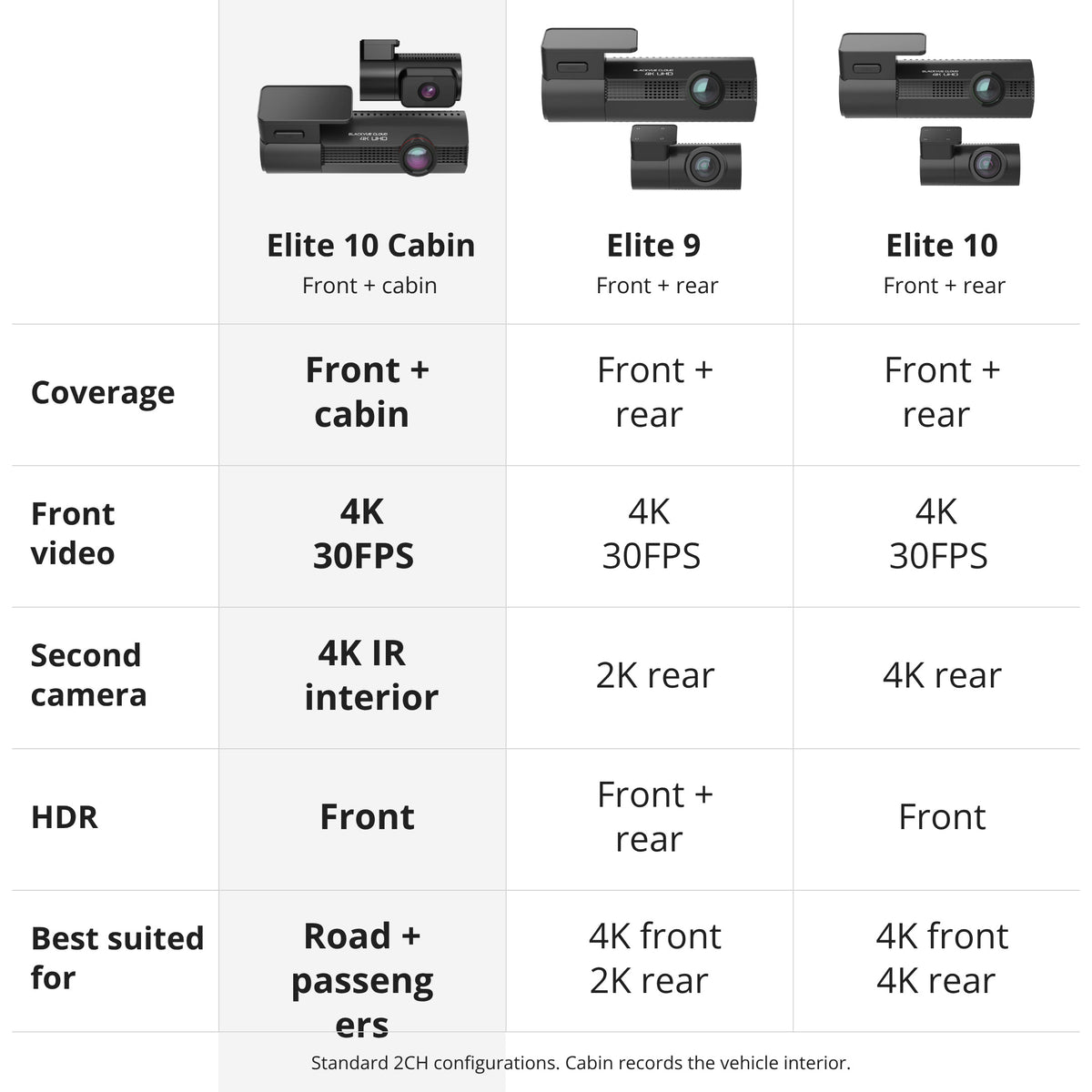

No. The second camera is a 4K infrared interior camera. The Cabin system cannot use the standard Elite 10 rear camera. If you want rear-road footage, compare the regular Elite 10 2CH or Elite 9 2CH.

What is included for storage and power?

A 64GB microSD card, hardwire cable and USB-C 12V adapter are included. Storage supports up to 1TB. Follow BlackVue’s card guidance and check the exact card’s compatibility before upgrading.

Do I need an LTE subscription to use the cameras?

No. Local recording and nearby app access do not require an LTE subscription. Remote Cloud access needs internet. The optional CM100G module requires a compatible SIM and data plan, and some Cloud features depend on the service plan.

Does Power Saving capture footage before an impact?

No. Power Saving waits in low-current standby and wakes after an impact. Use Motion & Impact Detection for the 10-second pre-event buffer. Time Lapse provides a condensed parking record at 1FPS without audio.

How can I power parking mode?

Install the included hardwire cable and set the camera’s low-voltage cutoff and parking timer, or use a compatible battery pack such as the B-130A. The B-130A’s supplied direct output cable supports BlackVue Elite cameras. USB-C PD3.0 and the supplied 12V adapter do not support Parking Mode. Direct vehicle USB-C power needs a PD3.0 port for driving recording.

Can I turn off cabin audio?

Yes. Audio recording can be disabled in the app or camera settings. Check both camera views before securing the mounts; the wide interior lens can still be blocked by seats or passengers.

Does the cabin camera record HDR?

HDR applies to the front camera. The cabin camera uses infrared LEDs and an automatic IR-cut filter for interior recording.

Are important files protected permanently?

No. Event-file protection can reserve up to 50 event recordings, but formatting can erase them. Loop recording overwrites older unprotected clips when the card fills. Download important clips promptly and follow the manual’s card-care guidance.
