Note: The Cellink NEO Extended Battery Pack is meant to work as an extension to the Cellink NEO Battery Pack. This will not work as a standalone product.

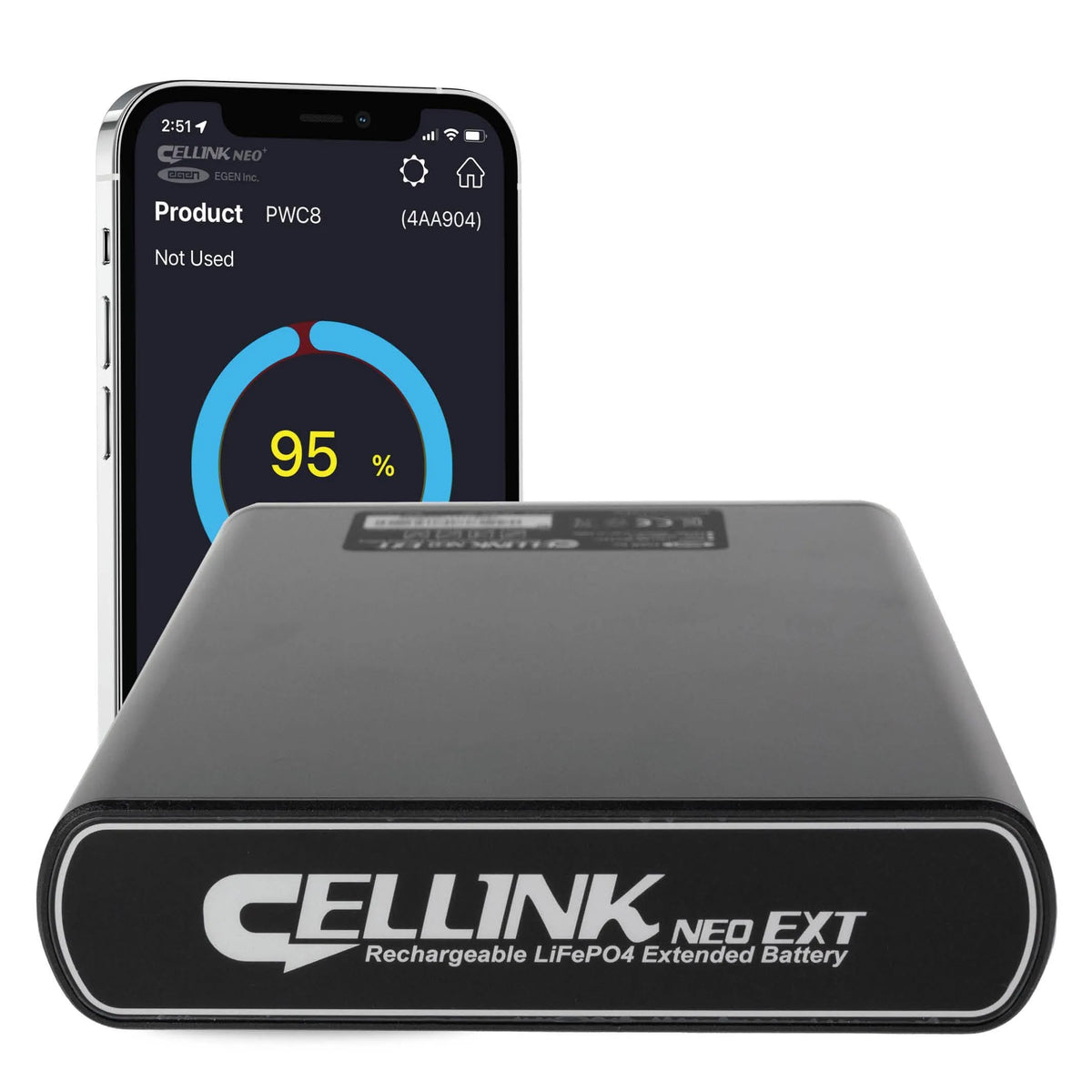

Cellink NEO Extended Battery Pack
Cellink NEO Extended
Please Read Before Purchasing

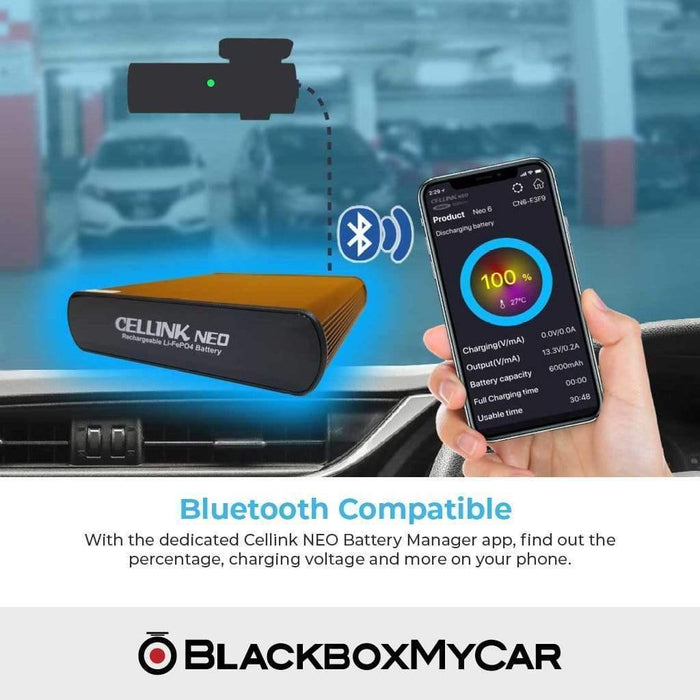

Please read this important notice regarding compatibility. It is important that you check the firmware version of your Cellink NEO base battery unit before ordering the Cellink NEO Extended Battery Pack. You can check the firmware via the smartphone app when your Cellink NEO is connected via Bluetooth. Please see our screenshots tab for more info.
If your firmware version, seen on the lower right-hand corner of the app, is F146 or older (i.e. a number is "146" or below), you will need to send your Cellink NEO base unit to us for a free firmware update. The return shipping is on us! Please contact us or over the phone at 1 (888) 978 6560 and we will send you a free return shipping label. Please note that both your firmware updated Cellink NEO base battery and your new Cellink Extended Battery Pack will be tested and sent back to you together as one shipment.
If your Cellink NEO’s firmware is above F146, you will not need to send your Cellink NEO base unit to us and can just order the Extended Battery Pack directly.
With dash cams becoming more common, it’s much more apparent that we need a new way to power these cameras. If you leave your car parked for long durations and want even more protection from hit and runs, the Cellink NEO Extended Battery Pack is perfect for you.
- To learn more about battery packs, please read through our introduction guide

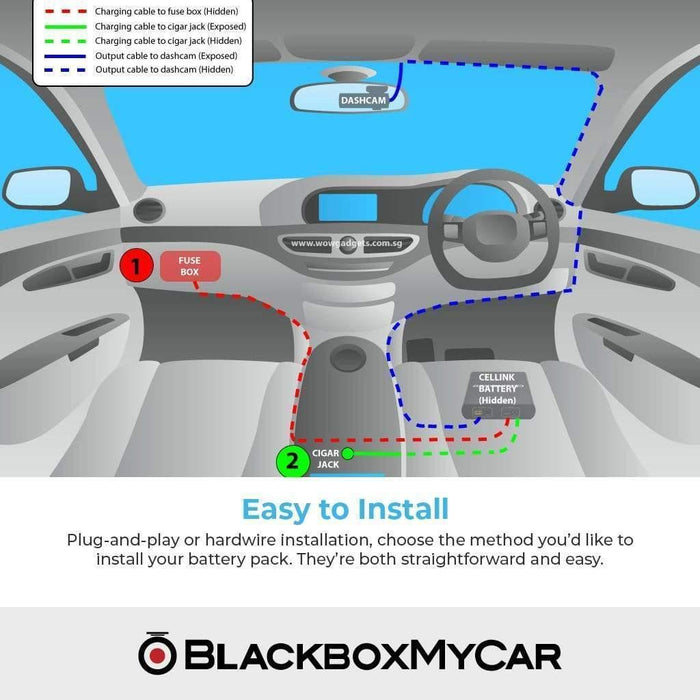

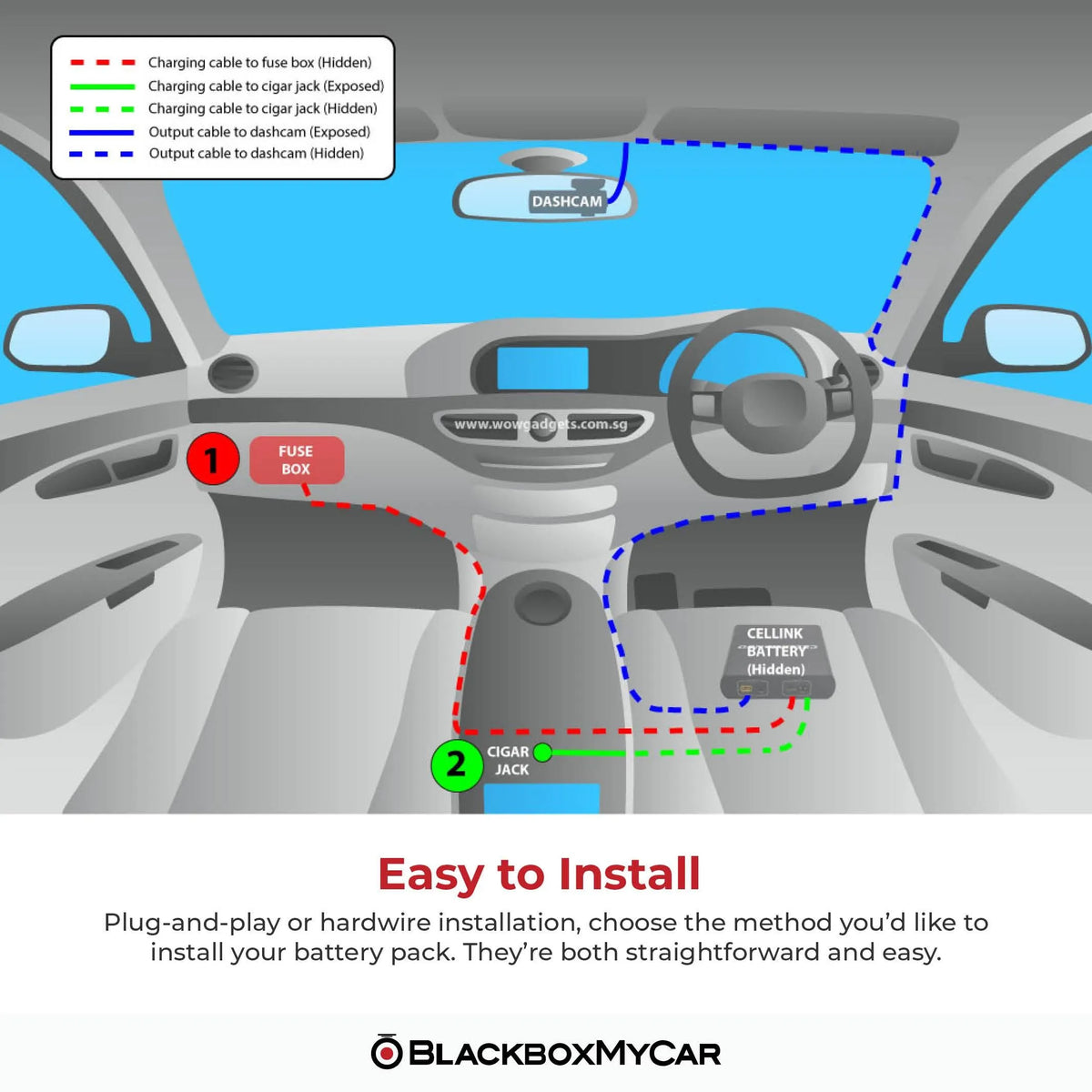

- When you are ready to install your dash cam, check out our general battery pack installation guide and the Cellink NEO battery pack installation guide. There are more than one method to install your battery pack; either use a hardwiring kit or a traditional 12V cigarette lighter adapter to install your dash cam
Extend Your Battery Pack Protection Further

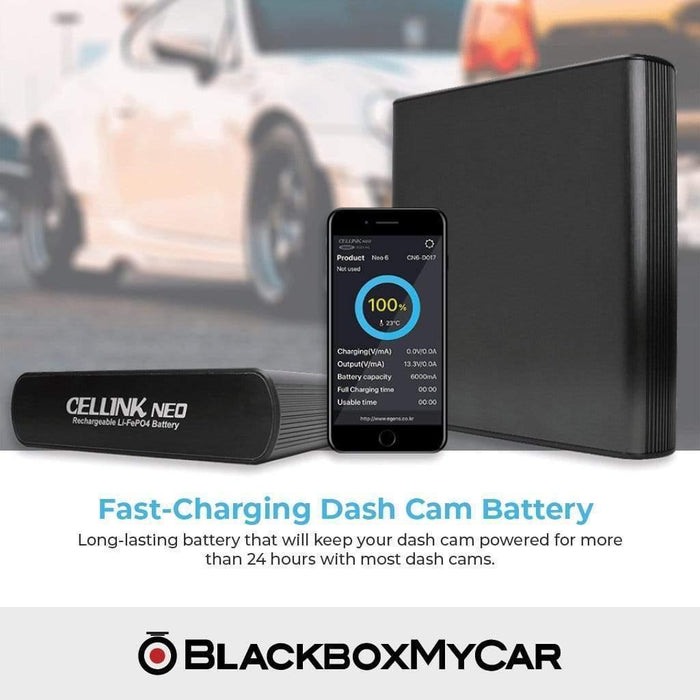

A fully charged Cellink NEO battery pack can run a single 1-channel dash camera for about 45 hours, while a dual-channel system can be run for about 25 hours with its integrated 76.8Wh. This measurement based on continuous runtime. Having one extended battery pack attached can double these numbers. The Cellink NEO Extended Battery Pack differs from the base system by having a boosted, integrated 84.5 Wh capacity, which explains why adding it on will more than double the overall performance.
Review: Cellink NEO
What is a Battery Pack?
Installation: Battery Pack
Comparison: Cellink NEO vs Cellink B
For more YouTube videos on the Cellink NEO, click here.
- Cellink NEO Extended Battery
- Charge Transfer Connecting Cable
- 2x Velcro Strips

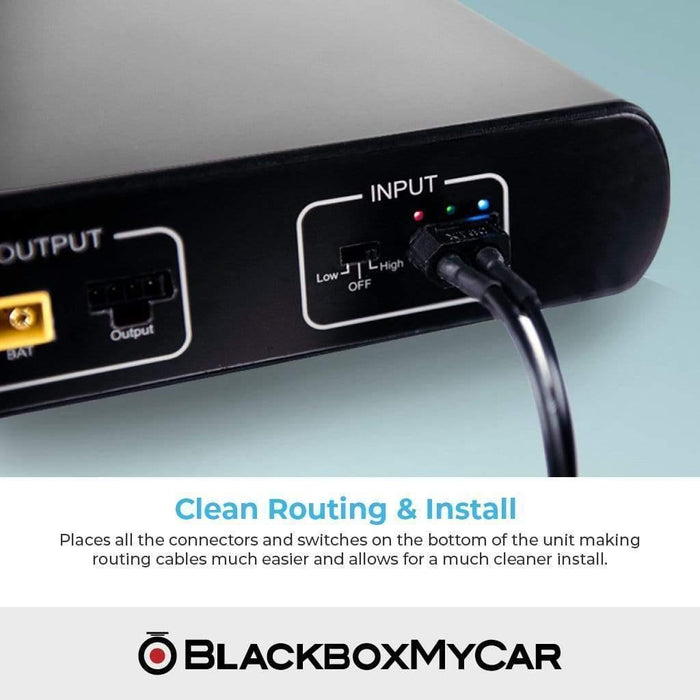

Input Cables for Installation
Cellink Hardwire Kit:
Allows the Cellink NEO Battery Pack to charge at a higher rate of 9 Amps, so it’s able to charge the battery in 45 minutes to full
Cellink 12V Power Cable:
Easier for install, but it charges the dash camera with lower current of 5 Amps, extending the charging time to 1 hour and 20 minutes
Output Cables for Installation
Charge Transfer Connecting Cable:

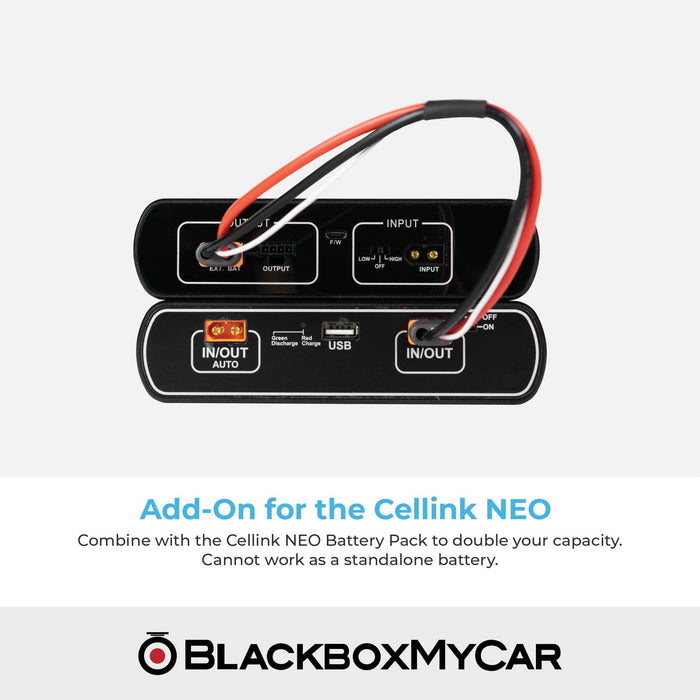

This cable allows the Cellink NEO Extended Battery Pack to connect to another unit, be it a main battery unit and/or another Extended Battery Pack. This will allow the units to link up and transfer charge to one another.
Female 12V Cigarette Socket Output:
This should be used for BlackVue dash cams and other cameras that switch into parking mode using the G-sensor. These are cameras that switch into parking mode after your vehicle is parked for a few minutes. The BlackSys dash cams can also work with this output method if the 'Use External Power' option is enabled.
Spliced Hardwire Kit Output Harness:
This kit is designed to work with the BlackSys and Thinkware dash cams. The hardwire kit is pre-spliced by one of our technicians so that it will switch into parking mode based on the ignition. Thinkware dash cams will not switch into parking mode if the female cigarette socket is used.
Unspliced 3-Wire Hardwire Kit:
If you already have a three wire (B+, ACC, Ground) hardwire kit, you can splice it into the Cellink Battery B battery pack output yourself. This is a good option for the DIY-ers out there.
If you have any further questions, our product experts are here to help.
60 min (9A Hardwire) | 1 hr 40 min (5A Cigarette Plug)
CHARGING VOLTAGE / CURRENT
14.6V / 5Ah
150mm X 170mm x 38mm
-10°C - 65°C (14°F - 149°F)
COUNTRY OF ORIGIN
1-Year Manufacturer Warranty
How many hours of parking mode will a battery pack offer?
Please note the below are averages and may differ unit to unit.
Up to 36 hours
Up to 24 hours
Cellink NEO + NEO Extended
Up to 72 hours
Up to 48 hours
What is a dash cam?
A dash cam stands for a dashboard camera that is mounted inside the vehicle, usually on the front windshield. A dash cam, depending on the model, can do many things such as record both when the vehicle is being driven and when it’s parked, record audio, provide a connection to a smartphone app so that video can be reviewed and saved on the spot, etc.
What is an IR dash cam?
An IR dash cam is a dash cam with infrared lights that provide recording details under poorly-lit conditions, as well as total darkness. These are dual-channel dash cam setups with a regular front-facing unit and a secondary unit that comes with infrared lights.
The secondary unit is typically mounted to face and record the interior of the vehicle, and thus is especially recommended for rideshare users, such as for Uber and Lyft, or for commercial use, such as fleet managers.
Why buy a premium dash cam?
There are a few reasons as to why this is the case, and these reasons make a huge difference. Learn more about premium features including design, parking mode, smartphone integration, 4K UHD video resolution, g-force, ADAS, memory card storage and more.
What is parking mode?
Parking mode recording is a feature of a dash cam that keeps your dash cam recording footage even when the vehicle is off. Typically found only in premium dash cams, parking mode provides around-the-clock protection and surveillance for the vehicle.
What is Wi-Fi & GPS?
The wi-fi feature in a dash cam is what allows a smartphone to be paired to the dash cams. Unlike a regular wi-fi network signal that gives you internet access, the purpose here is just to connect the dash cam and smartphone together.
The GPS feature in a dash cam shows the vehicle’s speed and, for some models, the location of the vehicle with Google Maps integration.
How much footage will my memory card store?
Please note the below are averages and may differ unit to unit.
How do I install my dash cam?
Where do I find the latest firmware?
What is a Radar Detector?
Radar Detector is a device that detects invisible radar waves that are used to get a speed measurement of your vehicle. When the radar detector is triggered by the invisible radar waves, an audio and visual alert is set off for the driver to slow down to avoid speeding tickets.
What are false alerts on a Radar Detector?
False alerts are when the radar detector picks up on radar signatures not from a police officer. Two common types are stationary and moving false alerts.
What are the differences between a Ka, K, and X bands?
X Band radar waves fall between 8.0ghz and 12ghz. Law enforcement X band radar guns operate universally on 10.5ghz.
K Band radar waves fall between 18ghz and 27ghz. Police K band radar operates strictly at 24.125ghz and 24.15ghz.
Ka Band radar waves fall between 33.4ghz and 36.0ghz. With very few exceptions, if your radar detector alerts a Ka band, you can be sure there is a legitimate threat ahead or behind you.
What is MRCD or MultaRadar CD?
MultaRadar is a brand new threat to drivers across North America. Unlike traditional technology, MultaRadar does not operate at just one frequency which renders many old radar detectors obsolete from detecting MultaRadar.
What is the return policy?
We fully stand behind our products and are absolutely confident that they will meet and exceed your highest expectations. However, within 30 days of purchase, if you are unhappy with your unit or if you simply wanted to try out a dash cam, we will refund your money. No questions asked. For more details, click here.
Customer ReviewsWrite a review
This is so easy to set up. It's a great addition to my dash cam setup.
Cellink NEO is able to power a BlackSys CH-200 2-CH WiFi Dash Cam for around 20 hours in parking mode. The Extended battery is able to effectively double that time to about 40 hours. Highly recommend it if you want an alternative to using your vehicle's battery for parking recording.
I purchased two of these battery expansion packs, because I leave my car in a parking lot that I can not see from where I live. I have to leave it there for three or four days ay a time. So I was using the NEO pack but it still did not show the car that hit mine because the power cut out after only two days. Now the dashcam will continue for over five days. So for that I am happy for these expansion packs. I guess that the only thing that is a negative is the software App. It is in need of a BIG UPGRADE!!! The App will show what information the NEO has but the information for the expansions does not show, it is like the main unit does not even know that there are expansion batteries connected. This means that you do not know the state the extra batteries. Also it would nice to be able to have some control of the battery from the App. too. I would like to be able to turn the batteries off it I am parked some where that I can see my car. It is lacking any security so any one that is near the car can access the battery data too. All they need is the App. This is a really promising product but it makes the App. function next to useless. For the price of this equipment, one main battery and two expansion packs there should be more thought for the software. After all this is the main reason to buy it.
