Thinkware Multiplexer Heavy Duty Bundle

Original price $499.99
Original price $499.99
Current price $499.99 CAD
from $499.99 CAD
Current price $499.99 CAD
Order today and get it before Christmas
Professional Installation Available

Get it professionally installed by our dash cam technicians in Richmond, BC. Certain restrictions apply. Learn more

Thinkware F200 PRO sold separately

This Multiplexer Heavy Duty Bundle comes with: Multiplexer, and 3 Exterior Infrared Cameras.

The Thinkware Multiplexer can only be used as an add-on accessory to a compatible Thinkware dash cam (F200 PRO, F790, X700, and X800). The Multiplexer is not a camera and cannot be used to record driving footage by itself.

Thinkware Multiplexer Heavy Duty Bundle

Transform your Thinkware dash cam into a multi-channel security system. Cover every angle surrounding your vehicle for all-around Full HD surveillance. Add the exterior infrared cameras to your existing F200 PRO 1 or 2-Channel system to get additional footage of the sides and interior view while driving.

Up to 5 channels for 360-degree protection

Add 3 exterior infrared cameras to your existing forward-facing (or forward & rear) dash cam to get all-round protection without the hassle of managing multiple dash cams or dealing with huge video files.

Multiplexer Bundle Options

Full HD Video Quality

All additional cameras record in 1080p Full HD and then reduced by have (960 x 540p) to be combined into one video. This ensures that details captured in the original video is preserved.

Water-Resistant, Weather-Proof

The perfect addition for RV owners or commercial drivers who need an externally mounted recording solution that can not be accomplished with a traditional dash cam. Its built-in IR light is powerful enough to record footage in extremely low-light conditions, while its IP68-rated body allows it to withstand harsh weather conditions.

Convenient Video File Storage

The Multiplexer merges recordings from the additional cameras into one feed, allowing the F200 PRO to operate as a full DVR system that would traditionally cost a fortune.

All additional cameras record in 1080p Full HD and then reduced by have (960 x 540p) to be combined into one video. This ensures that details captured in the original video is preserved.

Recordings from the main/front-facing dash cam unit are saved separately.

Videos & Reviews

Stay tuned for our Long Term Review. Subscribe to our YouTube channel for the latest news, reviews, and guides.

What's Included

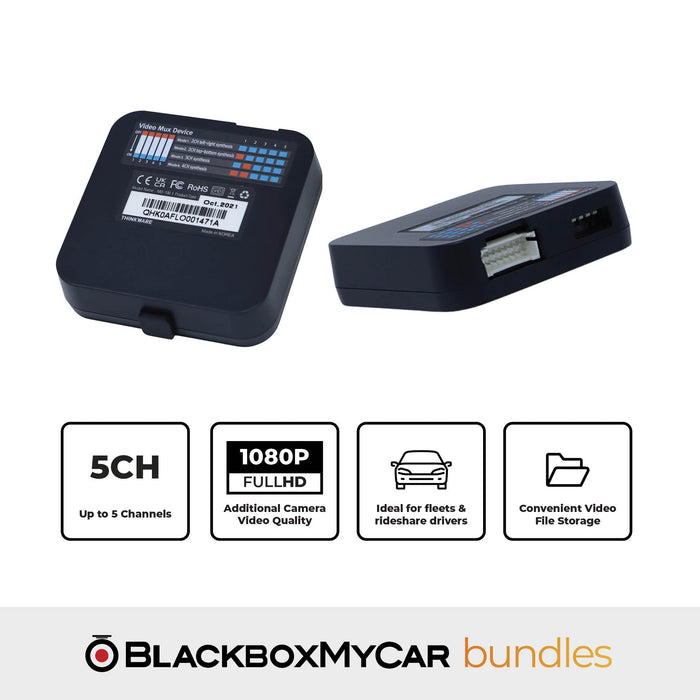

  • Thinkware Multiplexer
  • 3 x Exterior Infrared Rear View Camera
  • Multiplexer power cable
  • Multiplexer V-Out cable
  • Installation guide

Specifications

Thinkware Multiplexer

Recording Channel

up to 4 analog Full HD cameras (total of 5 cameras)

Dimensions

(WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)

Weight

40.0g (1.41 oz)

Storage temperature

-20°~ 70°C (-4°~ 158°F)

Operating Temperature

-10°~ 60°C (14°~ 140°F)

Key

piano code switch

Power Source

2 (BAT, GND) | DC 12V - 24V

Power Cable Length

3m

AV-IN

4 cables | 2.5 pi Stereo-jack type | AFHD

AV-OUT

for front camera connection | 2.5 pi Stereo-jack type

Country of Origin

South Korea

Warranty

1-Year Manufacturer Warranty

Exterior Infrared Camera

Resolution

Full HD 1080p @ 30 FPS

Camera

2.12MP Pixelplus

Viewing Angle

126°

Dimensions

(WxDxH): 53.2 x 43.1 x 51.3 mm (2.10 x 1.70 x 2.02 inch)

Weight

106.0 g (0.23 lb)

IR Wavelength

940 nm

IR Intensity

150 mW/sr @ 700 mA

Current Consumption

208 mA (IR On), 166 mA (IR Off)

Operating Temperature

-10°~ 60°C (14°~ 140°F)

Storage temperature

-20°~ 70°C (-4°~ 158°F)

Cable Length

2.0 + 20.0 m (6.6 + 65.62 ft)

Country of Origin

South Korea

Warranty

1-Year Manufacturer Warranty
