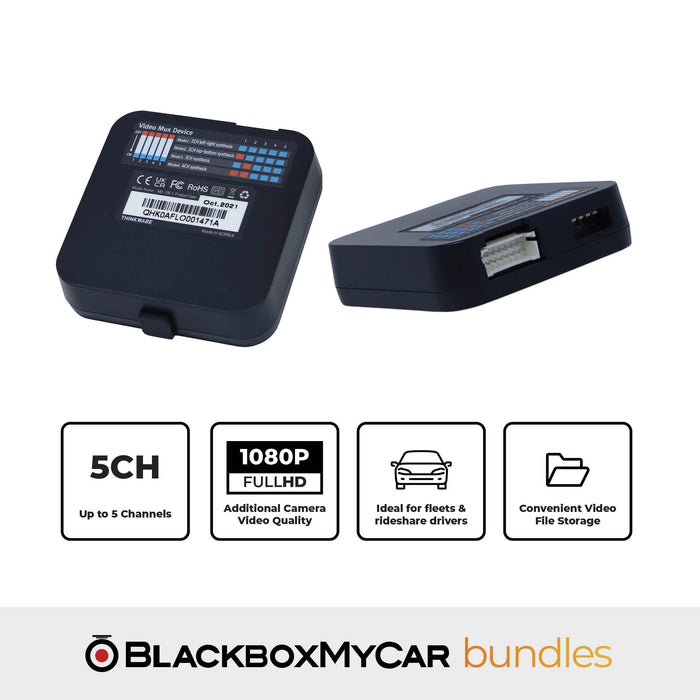

This Thinkware Multiplexer Cargo Bundle comes with: Multiplexer, 2 Exterior Side View Cameras, 1 Exterior Infrared Camera.
The Thinkware Multiplexer can only be used as an add-on accessory to a compatible Thinkware dash cam (Q200, F200 Pro, F790, X700 and X800). The Multiplexer is not a camera and cannot be used to record driving footage by itself.

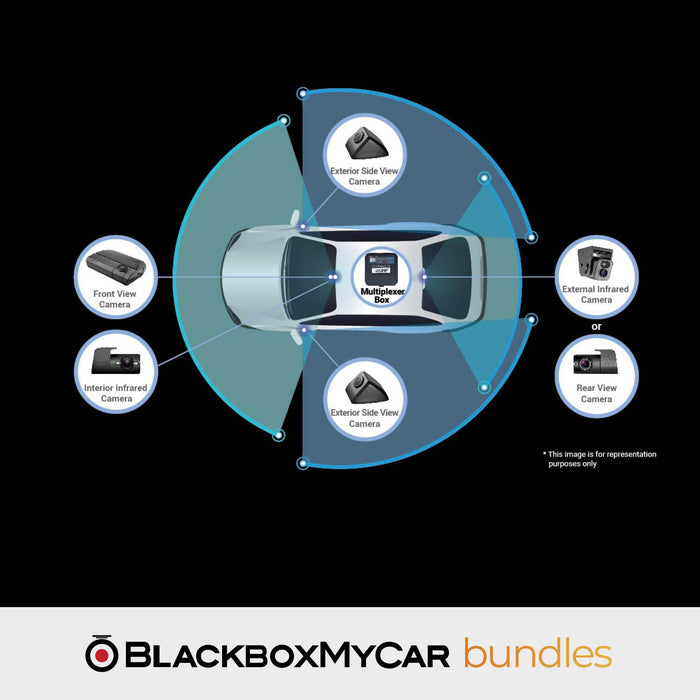

Transform your Thinkware dash cam into a multi-channel security system for your commercial vehicle. Cover every angle of your vehicle for all-around Full HD surveillance. Adding additional cameras with the Multiplexer will ensure that all details are captured from different angles for a complete and accurate description of the vehicle incident.
Get the whole picture and protect your investment against potential fraudulent claims. Adding additional cameras with the Multiplexer will ensure that all details are captured from different angles for a complete and accurate description of the vehicle incident.
Low-profile exterior side view camera fits neatly on either side of your vehicle to cover your blind spot and record events in Full HD video quality.
Its IP68-rated body is strong enough to withstand harsh weather conditions so you can rest assured knowing that the side view cameras will do its job rain or shine.
The perfect addition for RV owners or commercial drivers who need an externally mounted recording solution that can not be accomplished with a traditional dash cam. Its built-in IR light is powerful enough to record footage in extremely low-light conditions, while its IP68-rated body allows it to withstand harsh weather conditions.

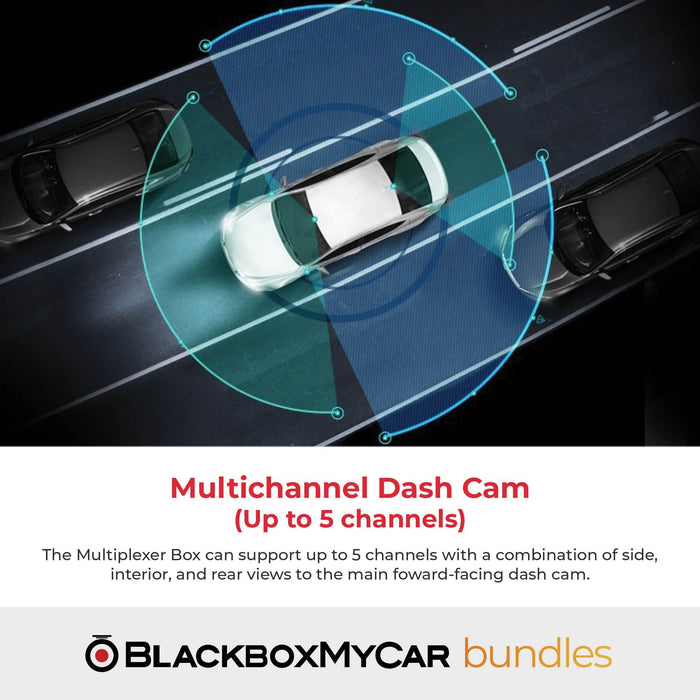

The Multiplexer merges recordings from the additional cameras into one feed, allowing the Q200 to operate as a full DVR system that would traditionally cost a fortune.
All additional cameras record in 1080p Full HD and then reduced by have (960 x 540p) to be combined into one video. This ensures that details captured in the original video is preserved.
Recordings from the main/front-facing dash cam unit are saved separately.
Recording Channel
up to 4 analog Full HD cameras (total of 5 cameras)
Dimensions
(WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
Weight
40.0g (1.41 oz)
Storage temperature
-20°~ 70°C (-4°~ 158°F)
Operating Temperature
-10°~ 60°C (14°~ 140°F)
Key
piano code switch
Power Source
2 (BAT, GND) | DC 12V - 24V
Power Cable Length
3m
AV-IN
4 cables | 2.5 pi Stereo-jack type | AFHD
AV-OUT
for front camera connection | 2.5 pi Stereo-jack type
Country of Origin
South Korea
Warranty
1-Year Manufacturer Warranty
Resolution
Full HD 1080p @ 30 FPS
Camera
2.12MP Pixelplus
Viewing Angle
129°
Dimensions
(WxDxH): 61.05 x 30.5 x 25 mm (2.40 x 1.20 x 0.98 inch)
Weight
57.0g (2.01 oz)
Storage temperature
-20°~ 70°C (-4°~ 158°F)
Operating Temperature
-10°~ 60°C (14°~ 140°F)
Input power source
DC 5V
Current Consumption
140 mA
Cable Length
1.5 + 3.0m (4.9 + 9.8ft)
Country of Origin
South Korea
Warranty
1-Year Manufacturer Warranty
Resolution
Full HD 1080p @ 30 FPS
Camera
2.12MP Pixelplus
Viewing Angle
126°
Dimensions
(WxDxH): 53.2 x 43.1 x 51/3 mm (2.10. x 1.70 x 2.02 inch)
Weight
106.0g (0.23 lb)
Storage temperature
-20°~ 70°C (-4°~ 158°F)
Operating Temperature
-10°~ 60°C (14°~ 140°F)
Wavelength
940 nm
Cable Length
2.0 + 20.0 m (6.6 + 65.62 ft)
Country of Origin
South Korea
Warranty
1-Year Manufacturer Warranty
