VIOFO VS1 Mini vs. Garmin Dash Cam Mini 2

Choose for the footage and access you need

We start with what you want your dash cam to do: record a drive, capture activity while parked, or let you check the camera from elsewhere. The VIOFO VS1 Mini and Garmin Dash Cam Mini 2 offer different recording controls, ways to save a clip and phone connections. We’ll help you match those choices to the power and network each task needs, so you can choose with more confidence and peace of mind on and off the road.

This comparison uses current VIOFO VS1 specifications, Garmin's current U.S. Mini 2 product information, the VS1 English manual marked V25.12.18 and the Mini 2 owner's manual, version 3, dated December 2021. Match setup instructions to your camera and installed firmware, and check service terms for your region.

Review the VIOFO VS1 Mini listing or the separate A119M Pro listing if you need a different VIOFO configuration. The original Garmin Mini 2 remains the Garmin model compared here.

Mounting and camera controls

Before choosing by size, we recommend checking the mounting position in your own vehicle. The lens needs a clear view through the wiped part of the windshield, with room for the mirror and sensors and an unobstructed driving view. You also need to reach the controls when parked. Dimensions alone cannot tell you whether the camera fits that position.

The VS1 manual describes an adhesive windshield mount with an adjustable bracket. It advises mounting near the rear-view mirror, keeping the lens within the wiper sweep, and avoiding airbag panels and their deployment area. It also cautions about window tint and nearby electronics. Follow the vehicle's instructions when routing the cable.

Garmin's Mini 2 manual describes an adhesive mount that can be difficult to remove. Its recommended environment for applying the adhesive is 21 to 38°C. That installation temperature is separate from the camera's operating range. Use the phone preview to check framing before settling on the position.

The buttons do more than one job. On VS1, a short press protects the current file or toggles audio, depending on the button; longer presses perform other functions such as enabling WiFi or formatting the card. On Mini 2, the controls toggle audio, save a photo and video, enter pairing mode or format the card. Learn the exact press sequence before using it.

Mini 2 starts when it receives power and stops when power is removed; its manual says it has no power button. A switched vehicle outlet can therefore turn it off with the vehicle. For driving-only use, that may suit your routine. If you want parked recording too, we can help you work through a separate power solution.

For U.S. state context, read our guide to dash cam laws in U.S. states. Check the rules where you will use the camera, including mounting and audio recording requirements.

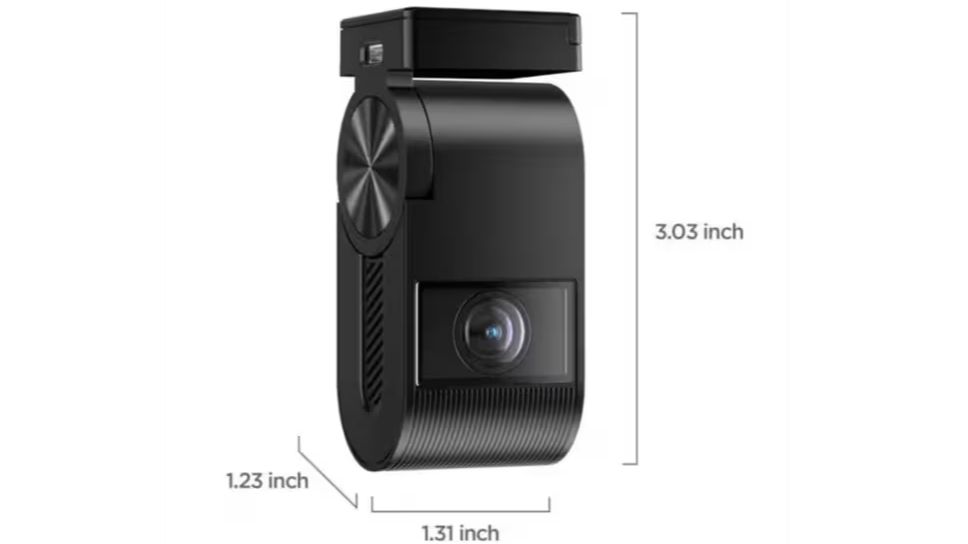

VS1 dimension illustration

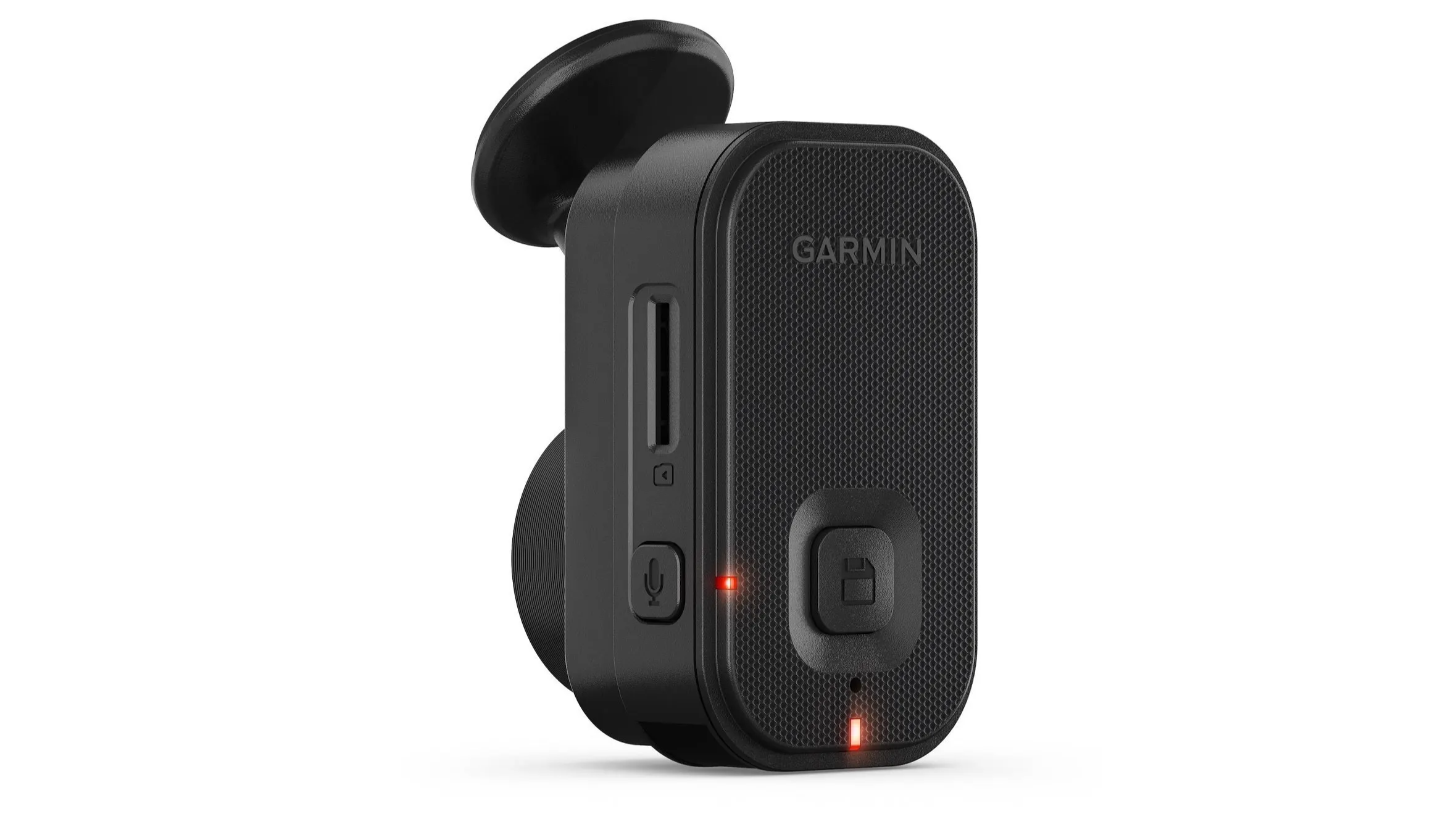

Garmin controls illustration

Recording settings and image detail

The VS1 manual lists two recording modes: 2K QHD (2560 × 1440) at 30 FPS and 1080P FHD (1920 × 1080) at 30 FPS. VIOFO's current specifications confirm 2K QHD at 30 FPS with HDR support. Select the mode in the VIOFO app. Stop recording before opening the settings menu, make changes while parked and confirm recording resumes afterward.

VS1 has a 5 MP Sony STARVIS 2 IMX675 sensor, an F1.6 lens and a listed 140° field of view. Its manual describes HDR settings of Off, On and HDR Timer to balance bright and dark areas. Check your camera's setting and firmware instructions; the manual's stated default does not establish the setting on every camera.

Garmin's current U.S. specifications list Mini 2 at 1080P FHD, up to 30 FPS, with a 140° diagonal field of view and Garmin Clarity HDR optics. Use Garmin Drive's Quality setting to check the selected recording mode. Compare saved files from the conditions you expect to record; a phone preview alone does not establish captured detail.

For night detail, we recommend looking at a sample from the exact camera and recording mode in lighting like your route. Check framing, windshield cleanliness and the lens too. That gives you a more useful basis for choosing than a sensor name or field-of-view number alone.

Read the Sony STARVIS 2 guide for sensor background. Sensor technology alone does not establish usable detail in a particular scene.

Original night-road illustration

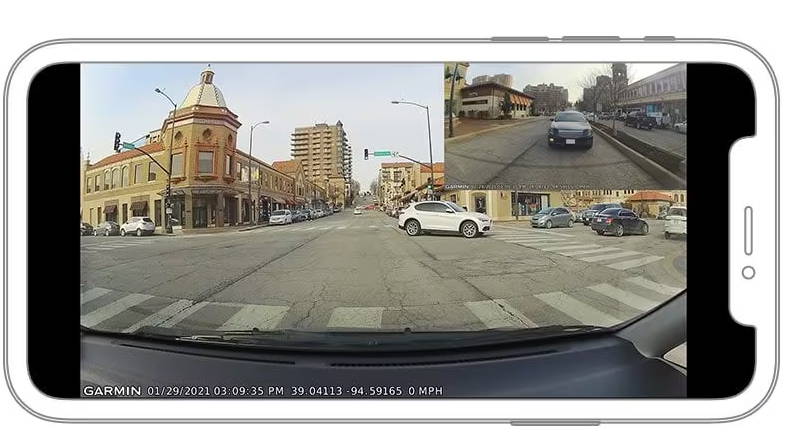

Garmin multi-view illustration

Voice commands, audio and status lights

Use the spoken phrases printed for the camera. With VS1 voice control enabled, the English commands are "Take Photo", "Video Start", "Lock the Video", "Turn On Audio", "Turn Off Audio", "Turn On WiFi" and "Turn Off WiFi". The manual names English, Chinese, Russian and Japanese command languages; the command language should match those system-language selections. For other system languages, it specifies English commands.

Mini 2's default activation phrase is "OK, Garmin", followed by "Save Video", "Take a Picture", "Record Audio" or "Stop Audio". A tone indicates that the camera is listening, and another confirms a recognized command. The manual explains how to change the activation phrase and turn voice control off in Garmin Drive. It also notes that unsupported interface languages require English commands.

We suggest trying voice control while parked: speak toward the camera, reduce background noise and confirm the result with its feedback and a saved file. On VS1, spoken notifications and button or startup sounds have separate settings; these are also separate from microphone recording.

Both manuals let you turn microphone recording on or off. VS1 has a MIC indicator; Mini 2's microphone LED is red when audio is recording. Choose whether you want cabin audio, then check that state before use. Garmin warns that audio recording and passenger notice or consent requirements vary by jurisdiction, so check the rules that apply where you will record.

Learn the status lights so you know when to check the camera. VS1 distinguishes recording, recording errors, protected files and card-format reminders; its WiFi-connected paused state also has a distinct pattern. Mini 2 distinguishes recording, saving, Parking Guard, card problems and Bluetooth pairing. A light cannot guarantee a usable clip. If an error appears, inspect the card and test a saved file before relying on the camera.

Voice and card illustration

Nearby phone access and remote features

For VS1, enable camera WiFi, connect the phone to the camera's network, then open the VIOFO app. The manual describes preview, playback and camera settings through that connection, with 2.4 GHz and 5 GHz WiFi choices. Use that connection while near the vehicle. For access from elsewhere, confirm a separate supported network service instead of relying on the phone connection.

Consider the optional VS1 Bluetooth remote if you want a separate button to protect the current video file and take a snapshot. It does that job rather than providing WiFi playback. Confirm whether it is included in the package you choose.

VS1's GPS logger can add speed and location information and synchronize time and date when it has a GPS signal. You can disable it; the manual says doing so stops speed and position measurement and GPS time synchronization. It names VIOFO Player for computer playback of position and speed, so check the software requirements for your computer before relying on that workflow.

Mini 2 pairs with Garmin Drive for settings and footage management. Garmin's pairing instructions place the phone and camera within 3 m of each other. That setup distance is different from remote viewing: the manual also describes connecting the camera to a home, business or mobile-hotspot WiFi network. Its device specification lists 2.4 GHz wireless operation.

For Mini 2 remote Live View, plan the connection and service before choosing your setup. Garmin’s current U.S. page requires active WiFi, constant power and a Vault subscription; some vehicles also need the optional Constant Power Cable. The network must allow connected devices to communicate. Garmin warns that public or unsecured networks may expose video and audio data, so use an appropriate network and confirm service availability for your region.

Vault stores saved clips online. Garmin's current U.S. Mini 2 page describes paid online storage and requires an active WiFi connection and Vault subscription for uploads. Check the current terms for your region to confirm fees, retention and access. The December 2021 manual's 24-hour wording is historical, not a current free-storage offer. Export important clips to another storage location.

If you use a Garmin Drive network with multiple cameras, the manual says a GPS-connected camera can add location information to saved videos from the network. If you want location attached to a Mini 2 clip in that network, identify which GPS-connected camera supplies it.

For separate systems, browse BlackVue dash cams, read the Thinkware CONNECTED guide, or use the dash cams and Cloud overview for background. These resources concern other cameras; check each exact model, network and current service terms. They do not add remote Cloud service to VS1 or establish a Garmin entitlement.

The Wi-Fi/GPS graphic prints a 4x Faster comparison and shows a phone, computer and route map. It illustrates local transfer and GPS logging; the printed speed multiplier is not a measured result for your phone or network. The two Vault images show a historical clip expiry/sharing screen and a gallery dated January 2021. Their controls do not establish current service terms.

Wi-Fi and GPS illustration

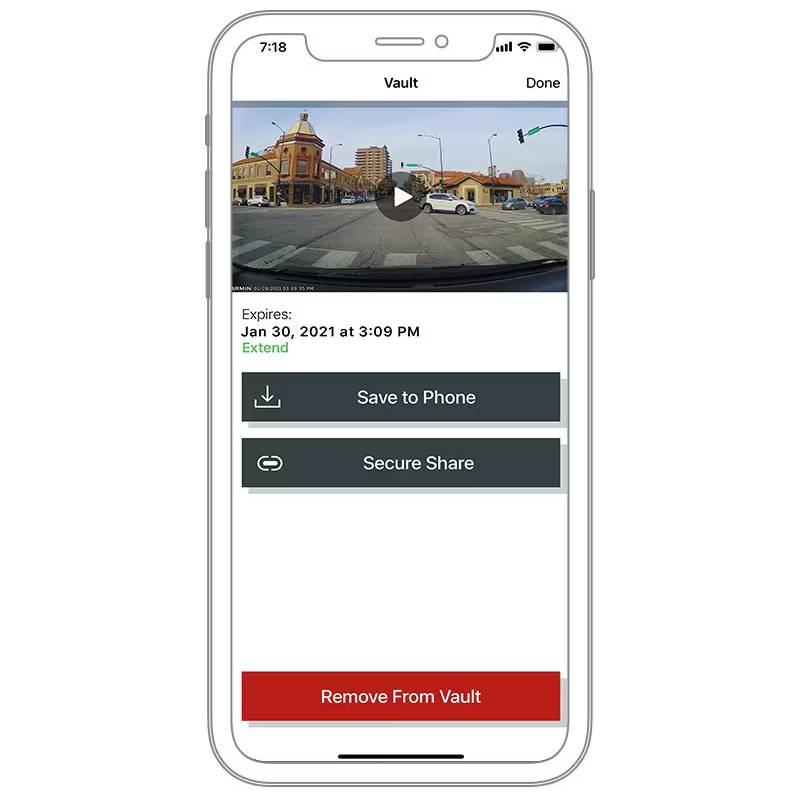

Historical Vault sharing screen

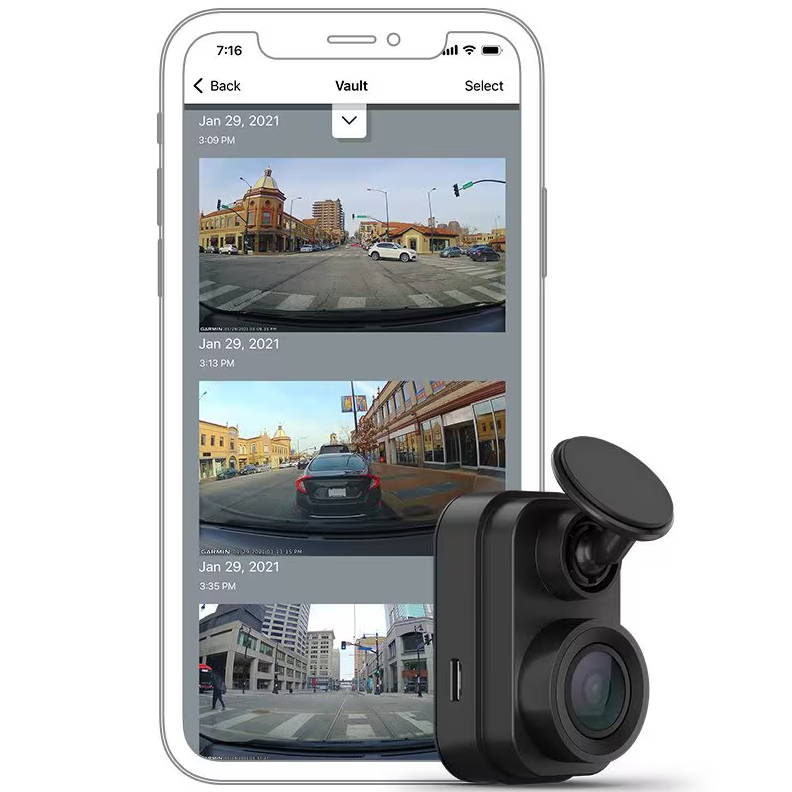

Historical Vault gallery

Parking recording and incident files

VS1 has three parking recording choices. Auto Event Detection records a sequence while it detects a moving object and stops when it detects no new movement. Parking motion sensitivity and parking G-sensor sensitivity have separate settings. Choose them for the scene around the vehicle and check the resulting files.

• Time-lapse records continuously at a selected 1, 2, 3, 5 or 10 FPS without audio. It is a different recording mode from an event buffer.
• Low Bitrate records video and audio continuously in smaller files. We suggest this mode when audio matters to your parking recording task.

VIOFO's current VS1 specifications identify buffered Auto Event Detection, which can retain footage from before and after a detected event with suitable continued power. Check the exact pre-event and post-event interval for your firmware, then inspect a saved parking file before relying on that window for an incident.

Mini 2's Parking Guard records detected incidents while parked with suitable always-on power. Garmin's current U.S. product page requires active WiFi and a Vault subscription for its Drive app notifications. The manual notes restrictions in some areas because of privacy regulations. Confirm the power, network, service availability and permitted use for your situation.

Garmin gives a 15-second-before and 15-second-after interval in its ordinary Event Detection section. Keep that interval separate from Parking Guard: the parked-recording instructions do not specify the same clip duration. An incident sensor and a visual moving-object detector are also different triggers.

While driving, VS1’s G-sensor can protect the current file, and its protect button can lock a recording manually. Mini 2 also lets you save a photo and video with its control or voice command. Our advice after an important event is to export the saved footage, so the card is not your only copy.

For the different recording tasks, read the parking mode guide and the bitrate explanation. Continuous smaller files and event-triggered clips preserve different views of an incident.

Parked-motion illustration

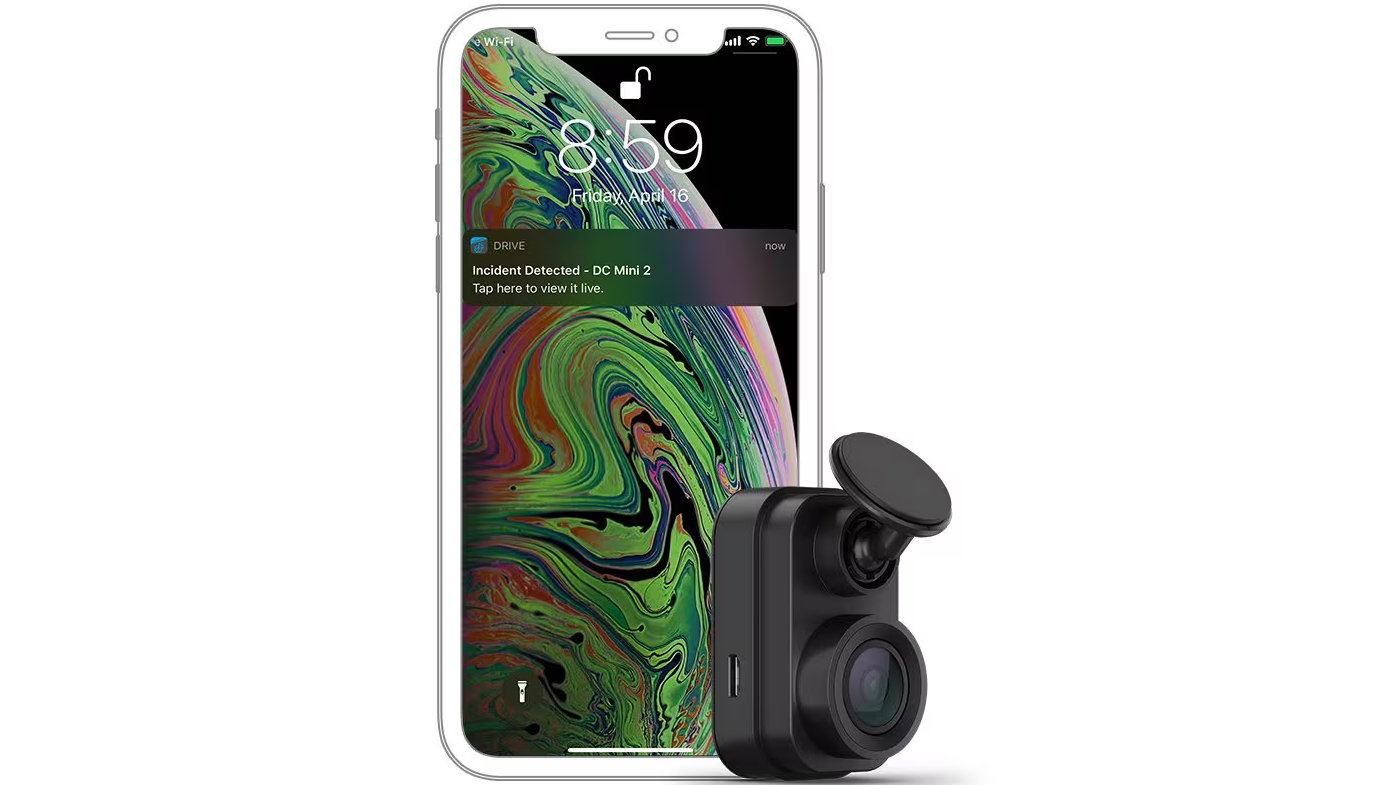

Historical incident notification

Power supply, timers and heat

For parked recording, we recommend starting with an external supply that stays on after the vehicle is off. VIOFO lists a supercapacitor for VS1, and Garmin’s current U.S. specifications list one for Mini 2. Those shutdown reserves do not supply hours of parking recording. VS1 specifies 5 V / 1 A input. We can help you identify a suitable cable, check whether your outlet is switched and plan how power will stop.

VS1's normal power instructions connect USB Type-C at the mount and use a USB adapter in the vehicle's 12 V or 24 V socket. Those socket voltages describe the vehicle side of the adapter, not a direct camera input. VIOFO recommends the optional HK5 ACC hardwire kit for parking recording. It is sold separately. Have an experienced installer check the exact kit instructions and vehicle connections.

VS1 has two different parking timers. Parking Recording Timer set to Off keeps it recording until the hardwire kit cuts power; the one-hour setting shuts the camera down after one hour in parking mode. Enter Parking Mode Timer controls entry: the manual describes Off for immediate entry and 90 seconds for delayed entry after engine-off.

The VS1 manual limits that entry timer to a hardwire cable and says it does not work with an external battery. These are camera settings, not proof of an HK5 cutoff threshold or a particular vehicle's electrical timing. Check both the camera and power-accessory instructions when diagnosing a setup that will not enter parking mode.

Garmin describes an OBD II Constant Power Cable with 10-minute, 24-hour and always-on selections. These selections control how long the accessory supplies power after you leave the vehicle. Its re-enabling of power when it detects motion or you re-enter and restart the vehicle is an accessory behavior, not a description of the camera watching for objects.

The Garmin Constant Power Cable has a stated 12 V low-battery threshold, 12 to 16 V input and 5 V output. Use those figures for that accessory only; they cannot establish universal vehicle compatibility or guarantee your vehicle will start. Follow Garmin’s direction to review your vehicle warranty provisions and instructions, and disconnect the accessory if it affects engine performance.

Garmin also describes a separate Parking Mode Cable for constant power, switched power and ground. Its instructions strongly recommend an experienced installer and warn that incorrect wiring can damage the vehicle or battery and cause injury. Use the exact accessory and vehicle instructions with the installer instead of following a generic wiring diagram.

VIOFO currently rates VS1 operation at -20 to 65°C (-4 to 149°F). Its manual separately advises switching off if the cabin exceeds 60°C to avoid recording errors or damage. Mini 2's stated camera operating range is -20 to 60°C (-4 to 140°F); the Garmin Constant Power Cable has a narrower -20 to 45°C (-4 to 113°F) range. Camera ratings and accessory limits do not guarantee operation in every hot cabin.

The Essential BlackboxMyCar Install Package is a separate installation-supplies choice. It does not replace the exact supported camera power cable or an installer's vehicle check.

Cards, playback and keeping footage

The VS1 manual supports microSD cards up to 512 GB, Class 10 or UHS-I, formatted as exFAT or FAT32. Garmin's current U.S. Mini 2 specifications also support up to 512 GB, with at least 8 GB and Class 10 or faster; its manual specifies microSDHC or microSDXC and FAT32. Choose a compatible card and format it using the camera's instructions.

Formatting deletes the card's footage. Export anything important first, and follow the camera's formatting instructions. VS1 directs you to unplug power before inserting or removing a card; doing so during recording can damage files. Garmin advises formatting at least once every six months and notes that repeated overwriting wears cards, which can eventually need replacement.

VS1 loop recording uses selectable one-, two-, three-, five- or ten-minute files and replaces the oldest loop files when space runs out. Protected files and parking recordings have separate folders. Check the appropriate folder when looking for an event rather than assuming everything is in the ordinary loop folder.

Mini 2 replaces the oldest unsaved footage when its unsaved storage fills. In supported regions, the optional Promptly Delete setting removes unsaved clips older than three minutes and unsaved footage at power-off. Save and export a clip you want to keep before that setting removes it. Saved, unsaved and parking files serve different purposes.

Review footage while parked. Mini 2 stops recording and disables alerts during photo or video playback, and it does not record during a software update. Keep Garmin Drive in the foreground during export. For VS1 settings, stop recording as directed, then check that it resumes. Phone access should not be mistaken for uninterrupted capture.

• After setup, check a saved file for the framing, date and time, and audio state you intended.
• Copy important footage to your phone, computer or other storage and confirm that the copy opens before deleting or formatting the card.

Compare the recording workflows

Use this table to compare the recording tasks that matter to you. It combines the two manuals with current VIOFO and Garmin specifications. Then match the power accessories, regional service terms and selected package to your setup.

Controls, recording modes and parking-power requirements

Task or setting	VIOFO VS1 Mini	Garmin Dash Cam Mini 2
Camera illustration
Front recording settings	2K QHD at 30 FPS with HDR support; the manual also lists 1080P FHD at 30 FPS. Sony STARVIS 2 IMX675, F1.6, 140°.	Garmin's current U.S. specifications list 1080P FHD, up to 30 FPS, a 140° diagonal field of view and Garmin Clarity HDR optics. Check the selected Quality setting in Garmin Drive.
Location information	GPS logger adds speed, position and time synchronization when a GPS signal is available; it can be disabled.	A GPS-connected camera in a Garmin Drive multi-camera network can supply location information for saved network videos.
Parking recording	Buffered Auto Event Detection, time-lapse without audio, or low-bitrate video and audio, with suitable external power. Confirm the exact buffer interval for your firmware.	Parking Guard records parked incidents with suitable always-on power. Garmin's current U.S. page requires active WiFi and a Vault subscription for notifications; check regional availability.
Incident protection	G-sensor or manual control protects the current file; parking sensitivities have separate settings.	Ordinary Event Detection saves 15 seconds before and after a detected event. That interval is not specified for Parking Guard.
Temperature guidance	Operating range: -20 to 65°C (-4 to 149°F). Manual separately advises switching off above 60°C cabin temperature.	Camera operating range: -20 to 60°C (-4 to 140°F). Power-accessory limits are separate.
Loop and retention	Oldest loop files are replaced when full; protected files and parking recordings use separate folders.	Oldest unsaved files are replaced when full. A regional Promptly Delete option removes unsaved footage sooner.
Memory card	Class 10 or UHS-I, up to 512 GB; exFAT or FAT32.	Garmin's current U.S. specifications require at least 8 GB and support up to 512 GB, Class 10 or faster. The manual specifies microSDHC/XC and FAT32.
Controls and preview	Physical controls, REC/MIC indicators and nearby VIOFO app access.	Physical controls, status and microphone LEDs, and Garmin Drive.
WiFi workflow	Direct camera-to-phone connection; manual lists 2.4 GHz and 5 GHz.	Phone pairing and a separate WiFi-network workflow for remote features; manual lists 2.4 GHz wireless operation.
Bluetooth purpose	Optional remote protects the current file and takes a snapshot.	Status LED identifies Bluetooth pairing mode. This is separate from footage playback.
Audio recording	Microphone toggle and MIC indicator; time-lapse parking does not record audio.	Microphone toggle or voice commands; red microphone LED means audio is recording.
Commands and feedback	Language-dependent voice commands, separately configurable voice notifications and button/startup sounds.	Default "OK, Garmin" activation, spoken commands, recognition tones and status indicators.
Parking power	Optional HK5 hardwire kit, sold separately; camera recording and entry timers differ. Use suitable continued power.	Manual describes always-on power, OBD II Constant Power Cable and separate Parking Mode Cable options.

On smaller screens, scroll horizontally to compare both models.

Questions about setup and use

Choose a setup for your vehicle

We would start with VS1 if you want selectable 2K QHD at 30 FPS, a GPS logger and a choice of moving-object parking sequences, time-lapse without audio, or low-bitrate video and audio. If network-connected Live View or notifications draw you to Mini 2, work through its power, WiFi and current service requirements first. Those differences help you choose by the recording task before comparing package prices.

For a compact installation, we suggest comparing the actual mounting footprint and bracket angle in your vehicle. Need a different resolution or faster recording mode? Ask us about the exact settings for the alternative model and channel configuration. If you download footage often, try the phone workflow with the device you will use. A model family name or broad performance tier alone is not enough to choose your setup.

The current BlackboxMyCar VS1 listing includes a 32 GB VIOFO microSD card and sells HK5 separately. Before paying for any kit, confirm its camera, condition, card capacity, power cable and mounting parts. Review warranty territory and seller terms, and check the product label if manufacturing origin matters. Compare the complete setup you need, including optional power accessories.

For current package details, use the exact VS1 listing. Compare VS1 Mini with the original Garmin Mini 2 by the complete installation and recording task. For Mini 2, confirm current model-specific price and package terms before buying. Review the VS1 package.

Use the VS1 listing to review the screenless model, or the separately named alternatives below. Neither a model family nor a photo establishes the exact recording configuration.

VIOFO VS1 Mini 2K QHD

Screenless front camera. Check the current listing for its package and optional parking power.

Shop Now

VIOFO A119M Pro

A separate VIOFO model with an on-camera display. Check its own recording settings and package.

Shop Now

VIOFO A329S 1CH

A separate model in the current catalogue. The photograph is marked A329; use the exact A329S listing to review the model and package.

Shop Now

Get help with the recording task

Tell us your vehicle make, model and year, the camera you are considering or already own, and how you want it to record while parked. Include your phone access needs and any existing power cable or battery. We’ll help you work through those details and compare a complete setup for your routine.

Contact Us

Manufacturer instructions

Use the model-specific instructions below for controls and setup. The dated Garmin manual describes its service workflows; verify current online service terms separately.

• VIOFO VS1 English manual, V25.12.18
• Garmin Dash Cam Mini 2 owner's manual, version 3, December 2021
• Garmin Mini 2 memory-card requirements
• Garmin Mini 2 Parking Guard instructions

Current VIOFO VS1 specifications supplement the manual. The manufacturer page does not establish a BlackboxMyCar offer in either market.
