BlackboxMyCar | Installing a Thinkware U1000-2CH Dash Cam in a Volvo XC60 Recharge

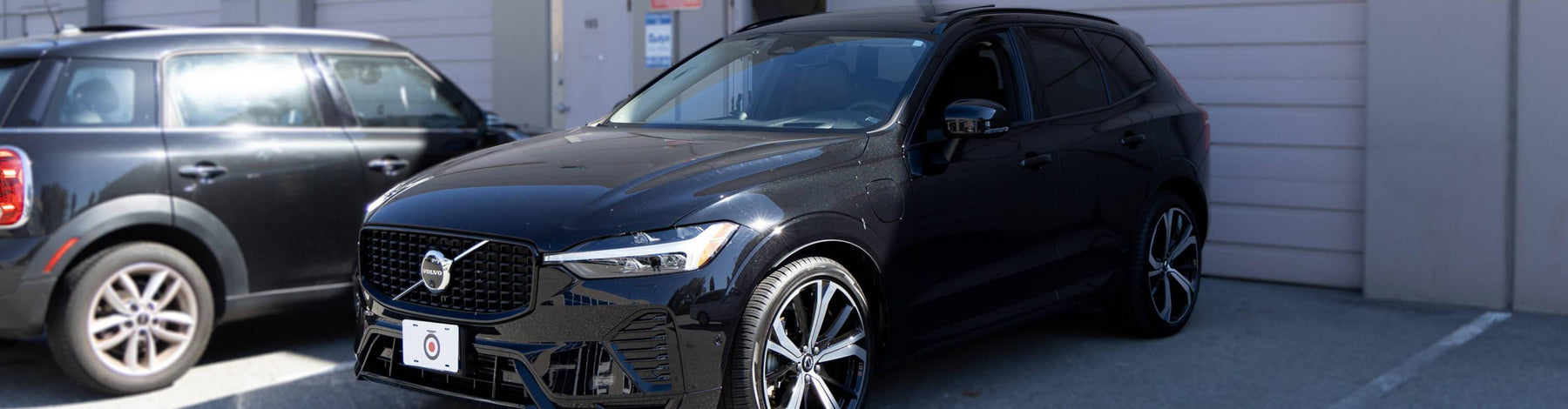

When it comes to dash cam installation, European plug-in hybrids like the 2024 Volvo XC60 Recharge require extra care to ensure seamless integration with existing systems. Today, we’re walking you through the process of installing a Thinkware U1000-2CH dash cam into this sleek, high-performance SUV.

This dash cam was previously installed in a 2021 Volvo XC60 Recharge, and now that the owner has upgraded to the 2024 model, they’ve decided to transfer it to their new vehicle—an excellent choice, as the U1000 offers 4K front and 2K rear recording, along with optional parking mode protection using the Thinkware RADAR Module.

Let’s dive into the installation process!

Installing a dash cam yourself?

Ensure your dash cam is installed correctly with our Essential Dash Cam Installation Kit. This user-friendly package makes installation easy and hassle-free, allowing you to drive with confidence.

Don't settle for less—protect yourself on the road with our top-quality installation kit today!

Sold out

Step 1: Dash Cam Placement and Mounting

Prepare the Windshield

  • Clean the windshield: Use an ammonia-free glass cleaner to clean the windshield, especially the area behind the rearview mirror where you’ll mount the dash cam.
  • Avoid ammonia-based cleaners: Windex, for example, can damage your tint if your car has tinted windows.

Mount the Front Dash Cam

For the front camera, choose a mounting spot at the top center of the windshield, making sure it’s aligned properly by checking the live view using the Thinkware app. Once you’re satisfied with the placement, peel off the adhesive backing and press the dash cam firmly onto the windshield, holding it for several seconds to ensure a secure bond.

Next, attach the Thinkware RADAR Module near the front dash cam for added parking mode protection.

Step 2: Hardwiring the Dash Cam

To access the fuse box, locate it in the passenger-side footwell by removing the side panels and lifting the carpet. Use a circuit tester to identify the correct ACC (Accessory) and Constant power fuses.

The ACC fuse powers on when the ignition is on, while the Constant fuse remains powered even when the car is off.

For the 2024 Volvo XC60, you’ll tap into the Heating/Steering Fuse (15A) for ACC power and the Door Module Fuse (20A) for Constant power. Connect the hardwiring kit to these fuses using Micro2 fuse taps, and ground the wiring by attaching the ground wire to a bare metal surface.

Pro-tip: Watch our Complete Hardwiring & Add-A-Fuse Guide video to get the in-depth instructions on hardwiring.

Step 3: Wiring the Front and Rear Cameras

Once the power connections are established, route the power cable from the fuse box to the front dash cam. Run the cable along the A-pillar and tuck it neatly behind the trim using a pry tool, making sure the wire doesn’t interfere with the curtain airbags.

Afterward, mount the rear camera at the top center of the rear windshield, avoiding defroster lines, and route the connecting cable from the front unit through the A, B, and C pillars. Use the pry tool to keep the cables concealed for a clean, professional finish.

Step 4: Final Steps

With the wiring complete, test the system by powering on the vehicle. Both front and rear cameras should activate automatically. Use the Thinkware app to adjust the camera angles for optimal coverage, and enable Energy Saving Parking Mode 2.0 if the RADAR Module is installed. Once everything is working properly, secure any excess cable length behind the panels to maintain a tidy appearance.

After completing these steps, you’ll have successfully installed your Thinkware U1000-2CH dash cam in your 2024 Volvo XC60 Recharge, giving you the peace of mind that comes with 4K front and 2K rear recording, as well as enhanced parking protection. Enjoy the benefits of this high-quality dash cam setup, knowing that your vehicle is equipped with a reliable system for capturing every drive.
